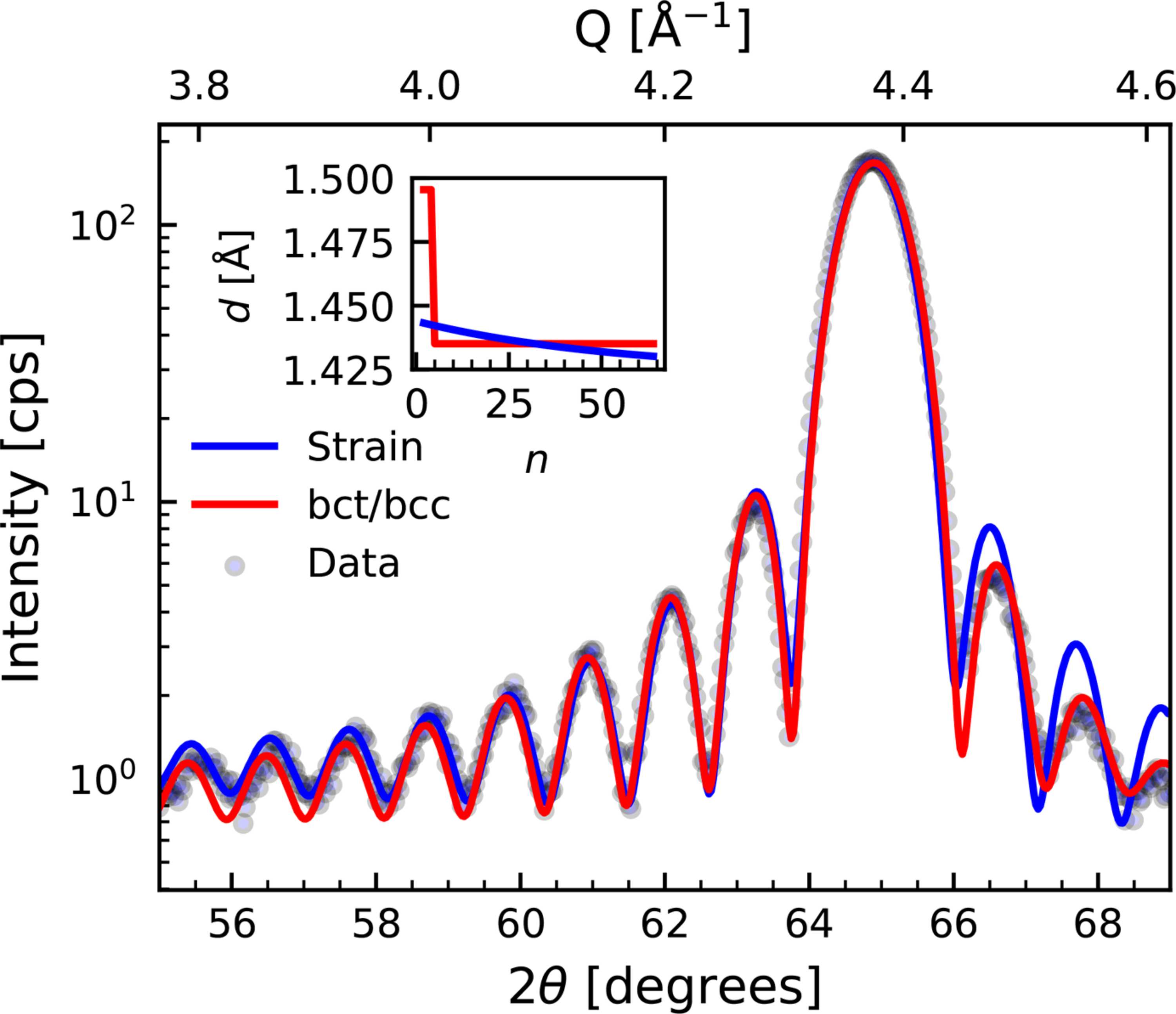

Figure 8
X-ray diffraction pattern around the Fe (002) Bragg peak of a 100 Å thick Fe layer grown on an MgAl2O4 (001) substrate. Fits of the data with GenL taking tensile out-of-plane strain and a bct Fe/bcc Fe bilayer layering into account are shown in blue and red, respectively. The fitted strain profiles, i.e. the evolution of the interplanar spacing d over the number of atomic layers n, are displayed in the inset in their respective colors.
