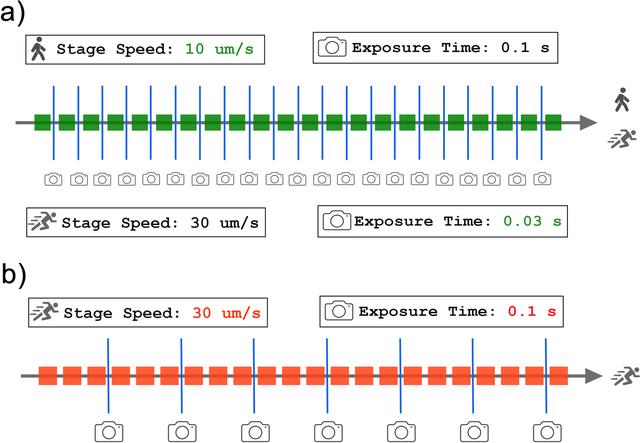

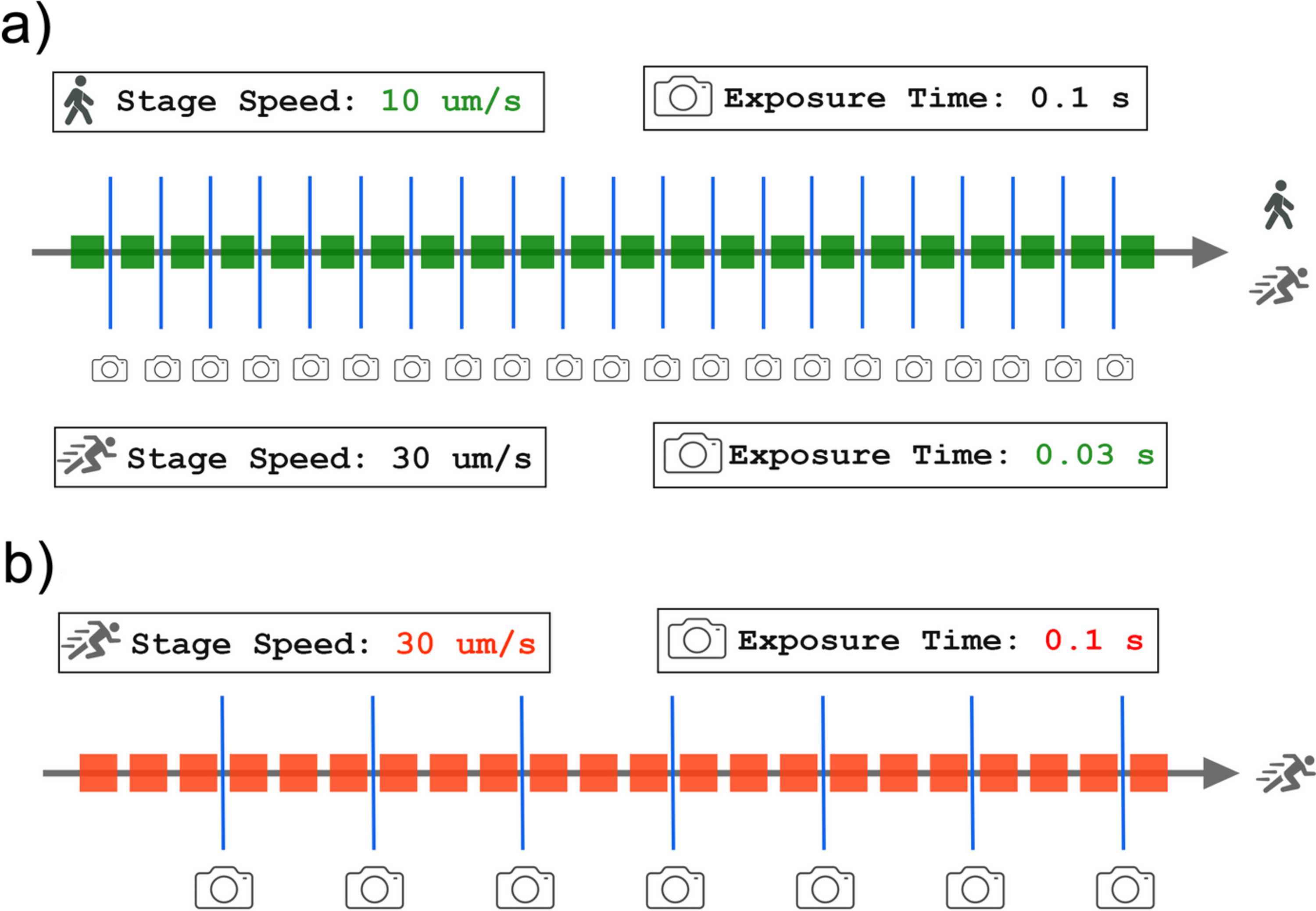

Effect of stage displacement per frame on the number of crystals illuminated per diffraction frame. Red and green cubes represent individual 1 × 1 µm crystals. (a) When the displacement per frame (1 µm) is comparable to the crystal size, each diffraction frame primarily corresponds to a single crystal. This condition can be achieved either by reducing the stage speed (top) or by shortening the exposure time (bottom). (b) When the stage displacement per frame (3 µm) exceeds the crystal size, multiple crystals are illuminated simultaneously, leading to overlapping diffraction. |
