Figure 2

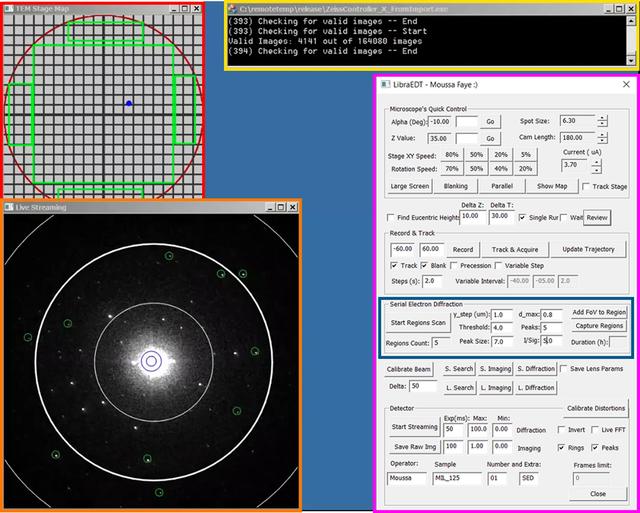

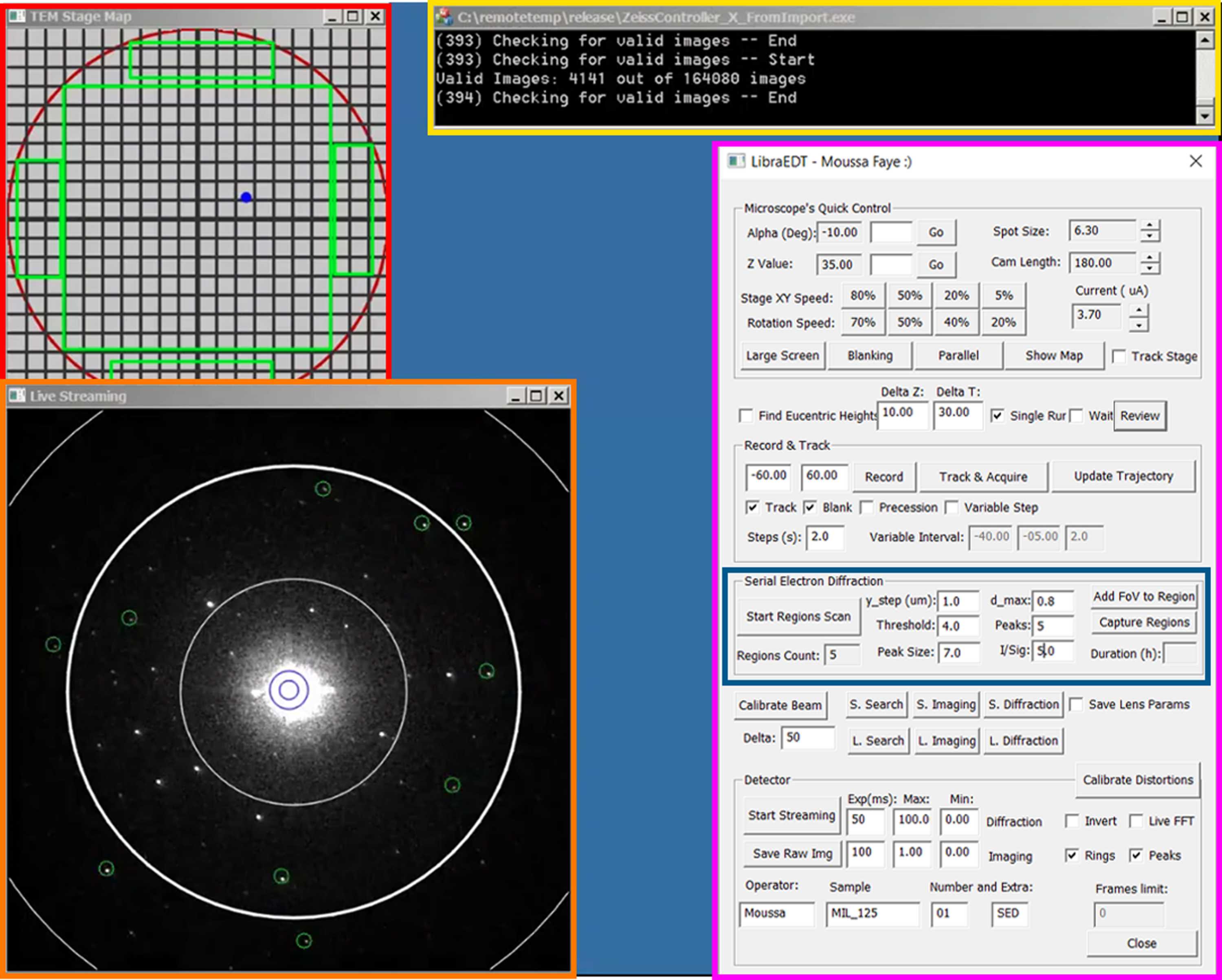

The LibraEDT interface during data acquisition. The red box highlights the interactive 2D stage map, showing the grid layout and regions marked for scanning. The yellow box displays the log window, tracking the progress of image acquisition and filtering. The pink box shows LibraEDT's GUI and data acquisition parameters. The blue box focuses on the Serial Electron Diffraction settings, where step size, thresholds and filtering conditions are configured. Lastly, the orange box shows the live feed of diffraction patterns, with resolution rings and detected peaks based on the previously set conditions.
