Figure 1

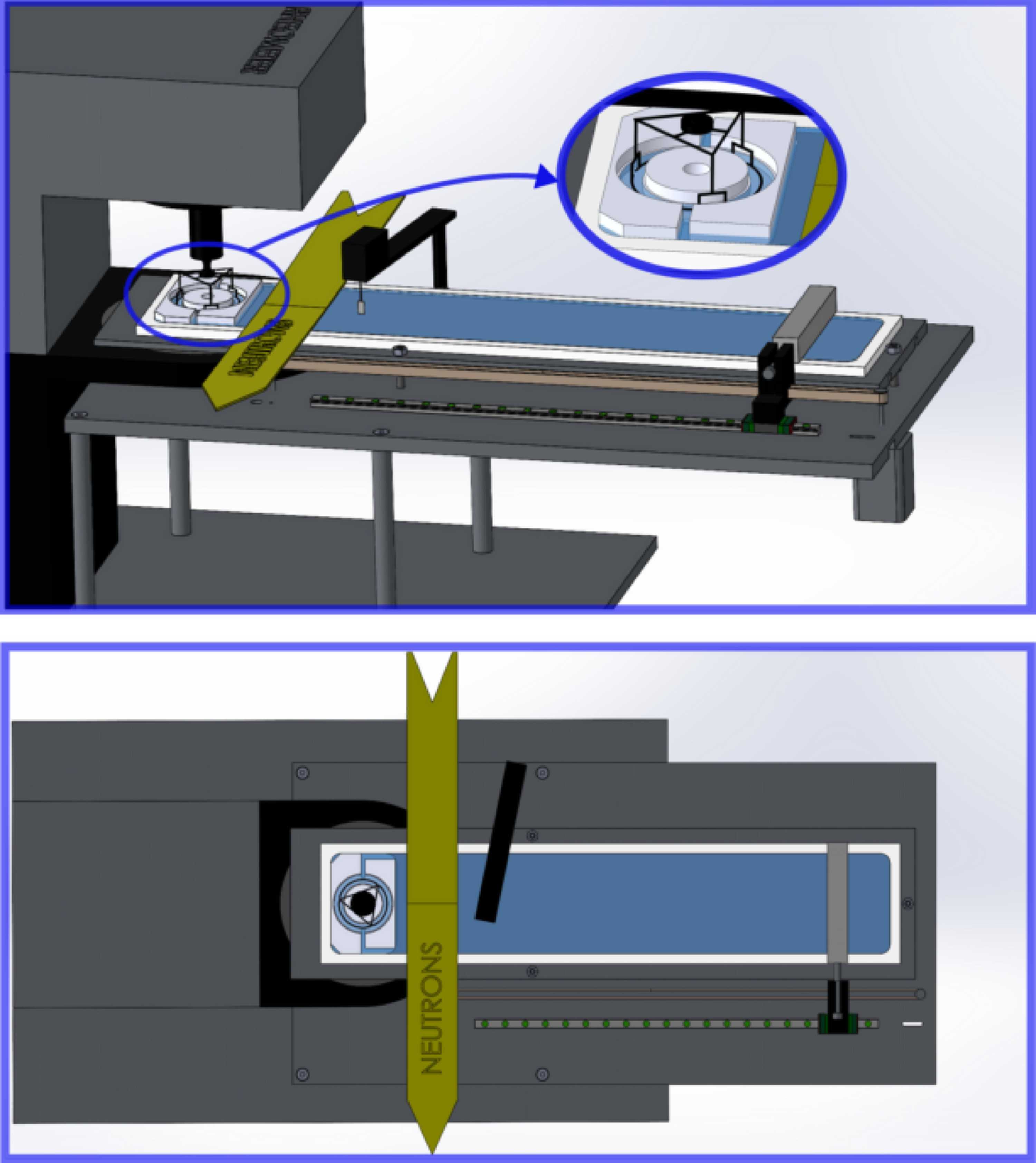

Sketch of the DWR on the FIGARO setup. (a) Perspective of the whole ensemble attached to the rheometer frame including the support table. (Inset: detail of the DWR ensemble.) (b) Top view with a half-height cutting plane showing the disposition of the interfacial rheology measurement system, incident neutron beam and footprint, interfacial pressure balance position, and barrier travel range.
