Figure 2

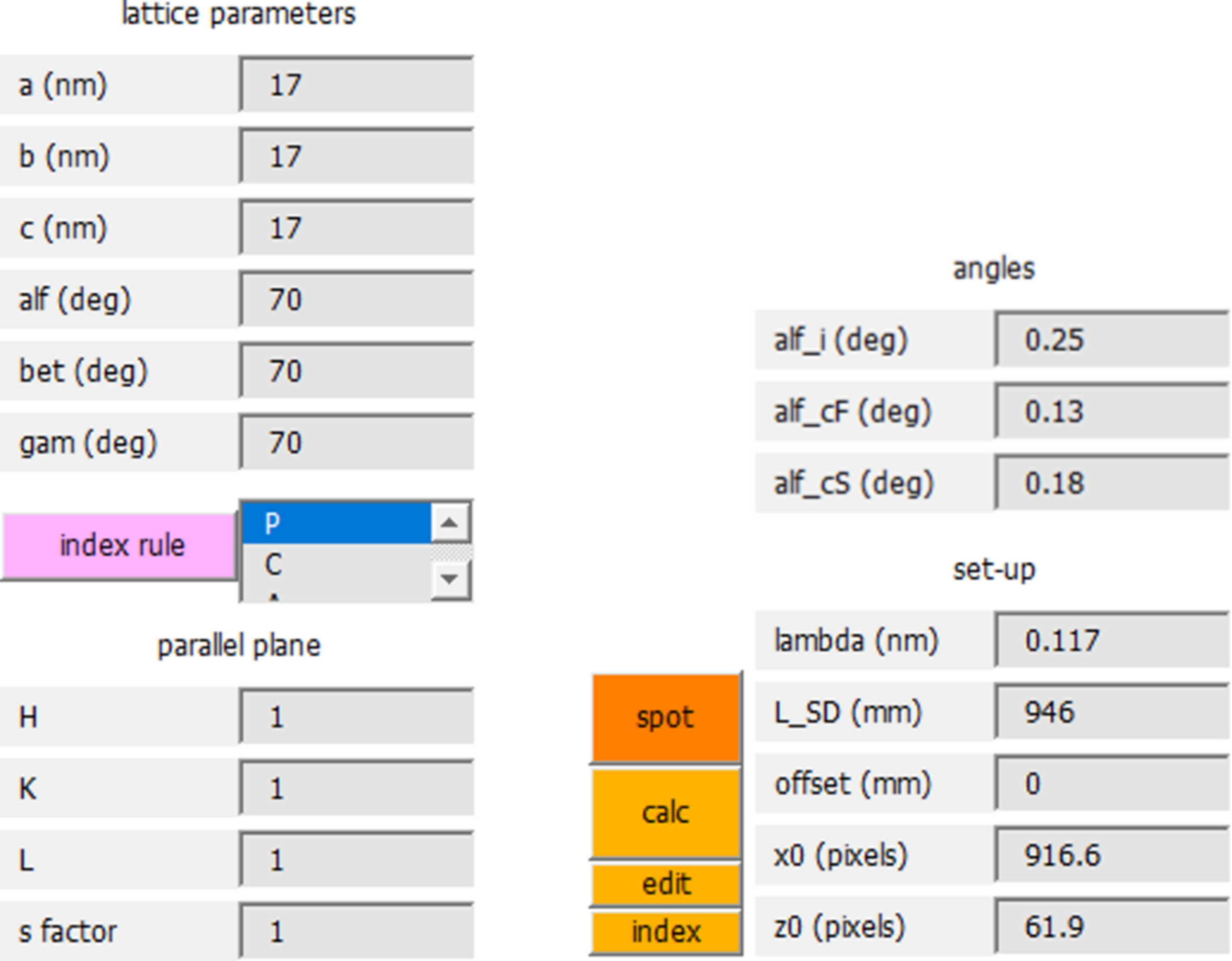

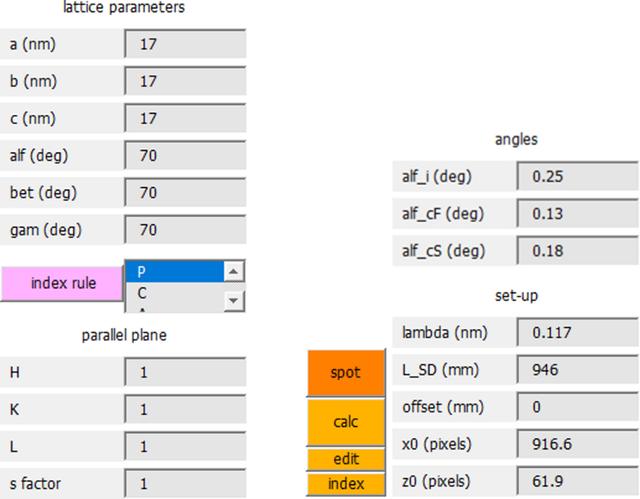

Input of lattice and setup parameters. For convenience, all relevant parameters are displayed in the right sidebar. On the left of the figure, the top part of the sidebar with lattice parameters (a, b, c, alf, bet, gam), index rule pull-down menu, indices of the texture plane (H, K, L) and the s factor is shown. On the right, the lower part of the sidebar with angle menu and setup menu is shown. The calc pushbutton (orange) initializes the calculation. Numerical output can be inspected, modified or saved using edit. The pushbutton index displays diffraction indices in the diffraction image. The spot pushbutton opens a menu for customizing the plot, i.e. to select spot symbol, color and rim color, as well as the line style for the horizon and critical angles.
