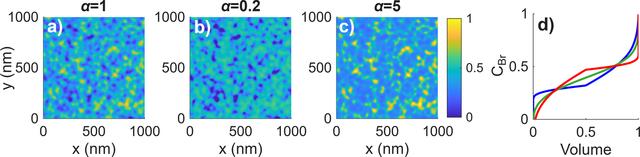

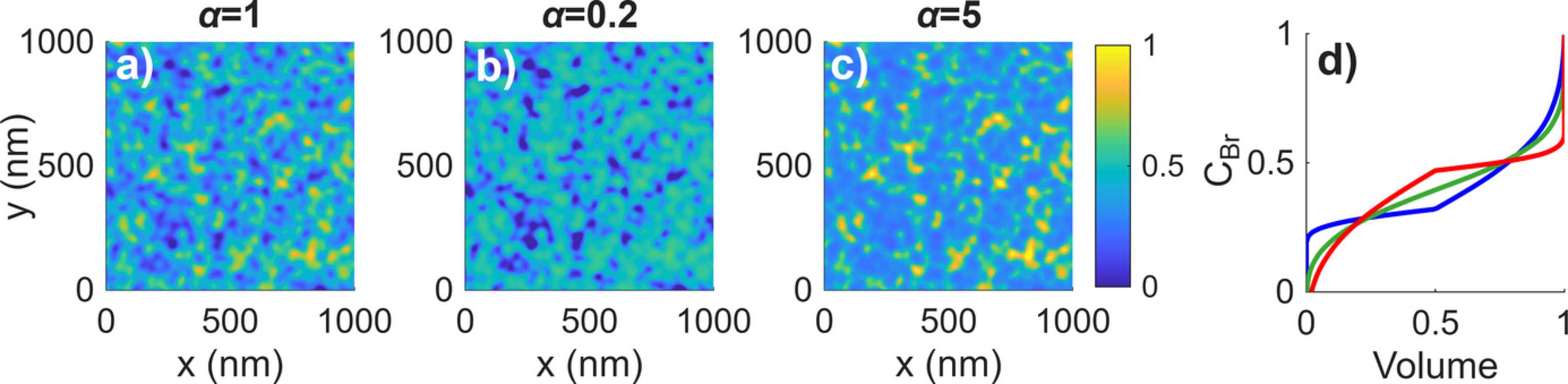

Figure 1
Examples of two-dimensional concentration profiles of Br generated with the correlation function in equation (7)[link] for (a) α = 1, (b) α = 0.2 and (c) α = 5 with correlation length ξ = 30 nm and r.m.s. deviation σ = 0.15. The mean Br concentration for all distributions is 0.4. (d) Normalized cumulative histograms of the Br concentration, showing the fraction of the sample volume with Br concentration less than or equal to a given value, for α = 1 (green), α = 5 (blue) and α = 0.2 (red).
