Epitaxy of ultrathin Fe3O4 films on SrTiO3(001): influence of growth parameters on the formation of coexisting (111)- and (001)-oriented phases

Alexander, A.; Ruwisch, K.; Thien, J.; Weissbach, A.; Pollenske, T.; Zhang, B.; Schulte, F.; Gutowski, O.; Vlad, A.; Coati, A.; Wollschläger, J.

doi:10.1107/S1600576726003316

Journal of Applied Crystallography Journal of Applied
Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 14

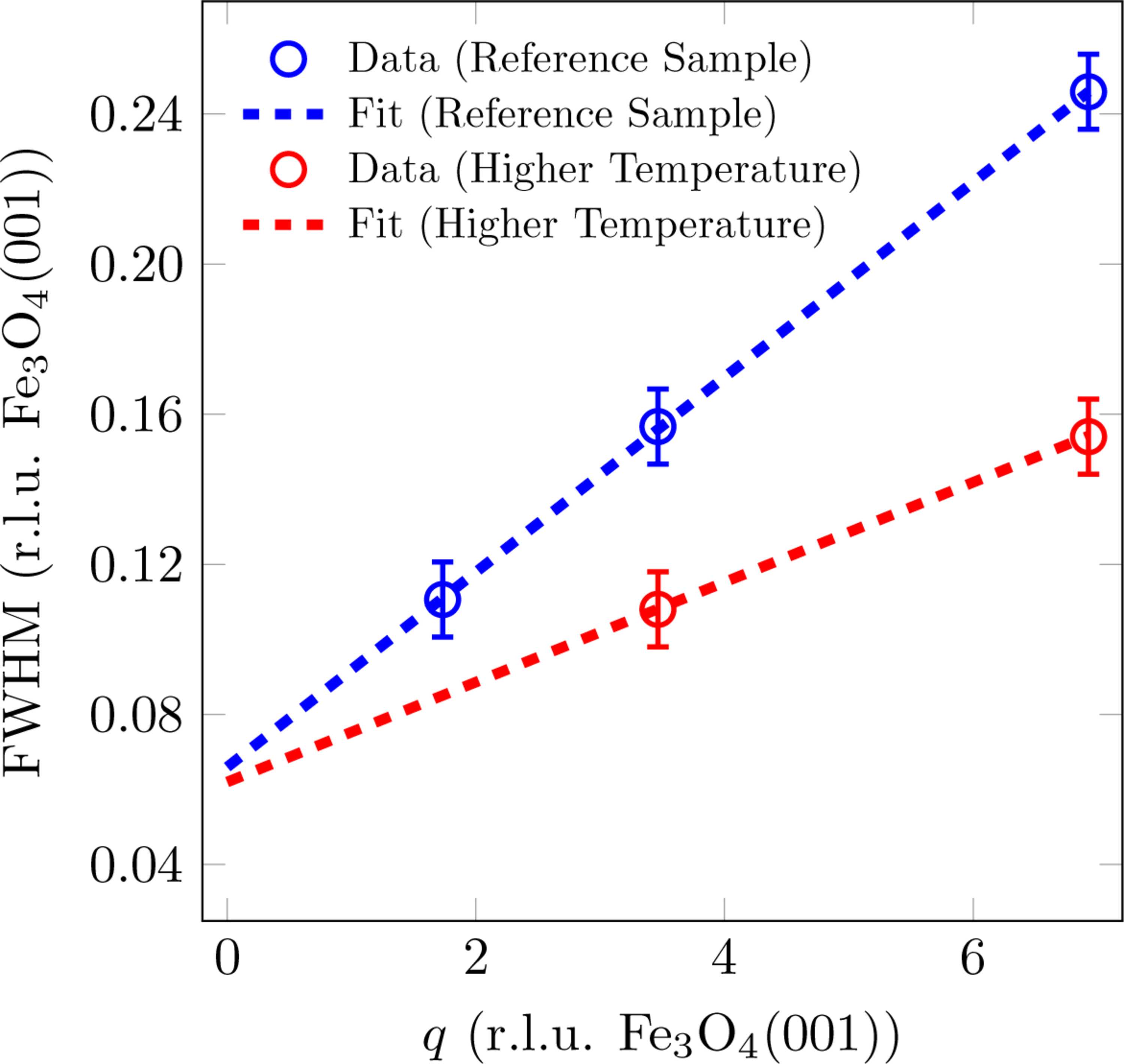

FWHM analysis of (LLL) reflections of (001)-oriented Fe₃O₄ as a function of the scattering-vector magnitude q for different deposition temperatures. The FWHM of the peaks has been fitted with a linear function. As the data point on the (111)_cub-CTR deviates significantly from the trend of the other data, it was not considered in the fit.

JOURNAL OF
APPLIED
CRYSTALLOGRAPHY

ISSN: 1600-5767

Volume 59| Part 3| June 2026| Pages 889-900

https://doi.org/10.1107/S1600576726003316
