Epitaxy of ultrathin Fe3O4 films on SrTiO3(001): influence of growth parameters on the formation of coexisting (111)- and (001)-oriented phases

Alexander, A.; Ruwisch, K.; Thien, J.; Weissbach, A.; Pollenske, T.; Zhang, B.; Schulte, F.; Gutowski, O.; Vlad, A.; Coati, A.; Wollschläger, J.

doi:10.1107/S1600576726003316

Journal of Applied Crystallography Journal of Applied
Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

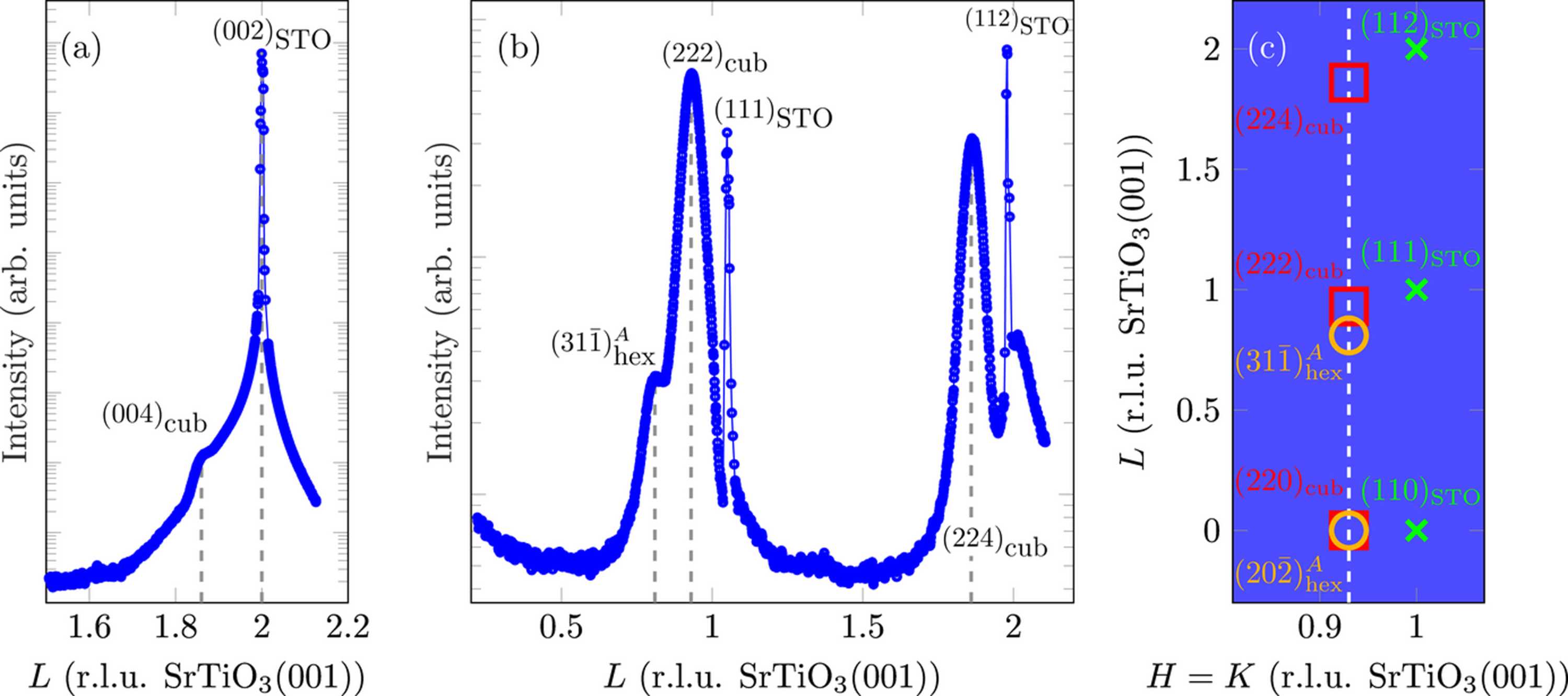

Figure 4
(a) XRD scan along the (00)-CTR of the reference sample. Since nothing can be seen in the range L < 1.5 except for the substrate reflection, this is not shown. (b) L scan along the $[(22)_{\rm cub}]$ -CTR of Fe₃O₄(001) of the reference sample (H ≈ K ≈ 0.93, cf. Fig. 2

). Here, the sharp outliers at L = 1 and L = 2 are due to diffuse scattering close to very intense substrate Bragg peaks being close to the measured Fe₃O₄ CTR. (c) Schematic sketch of the reflections expected on and near the $[(22)_{\rm cub}]$ -CTR of completely relaxed Fe₃O₄(001) and Fe₃O₄(111).
