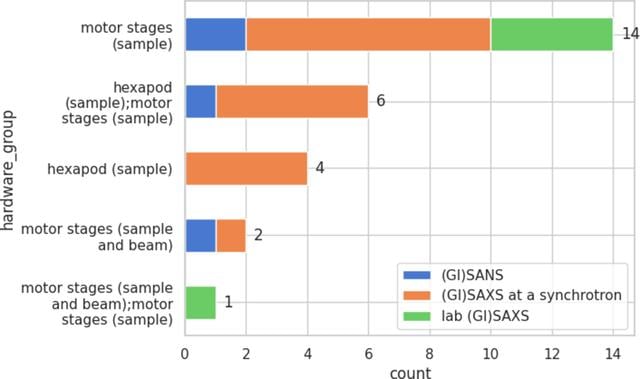

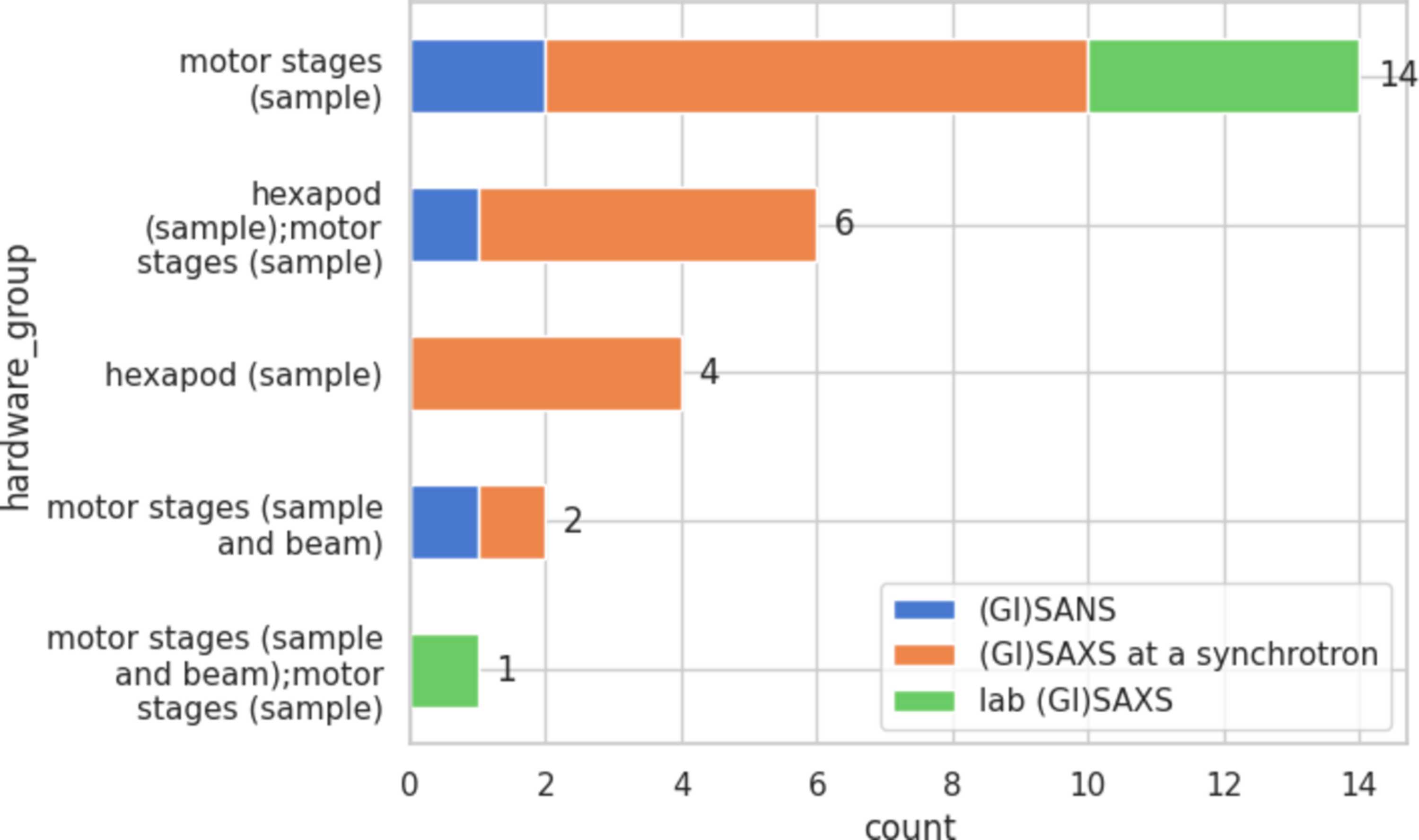

Figure 3
Combinations of hardware available to achieve sample alignment and control the incident angle. The majority of respondents indicate the use of individual motor stages for the translatory and rotatory degrees of freedom, with hexapods available at 37% of instruments (10/27). Multiple answers were allowed for this multiple-choice question.
