Figure 1

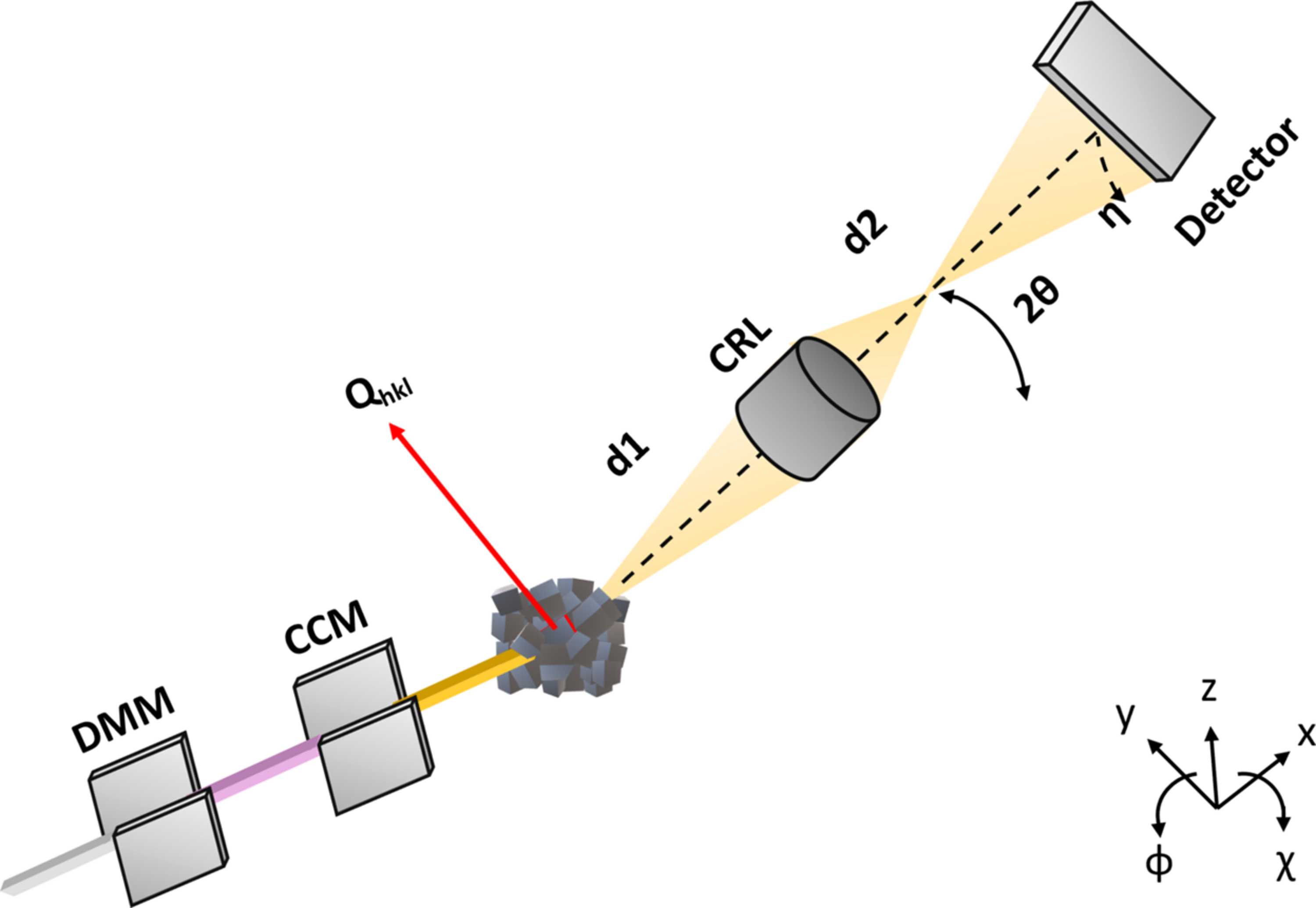

The DFXM setup for monochromatic illumination. The incident beam is shaped by the double multilayer monochromator (DMM) and then by the channel-cut monochromator (CCM). The objective is a CRL. This is inserted in the line of the diffracted beam, characterized by angles Mathematical equation and η. The optical axis of the objective is shown as a dashed line with indications of the sample-to-entry-of-objective distance, d1, and the exit-of-objective-to-detector distance, d2.
