Quantifying resolution in pink-beam dark-field X-ray microscopy: experiments and simulations

La Bella, M.; Poulsen, H.F.; Staeck, S.; Henningsson, N.A.; Kabukcuoglu, M.P.; Detlefs, C.; Yildirim, C.

doi:10.1107/S1600576726005200

Journal of Applied Crystallography Journal of Applied
Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 2

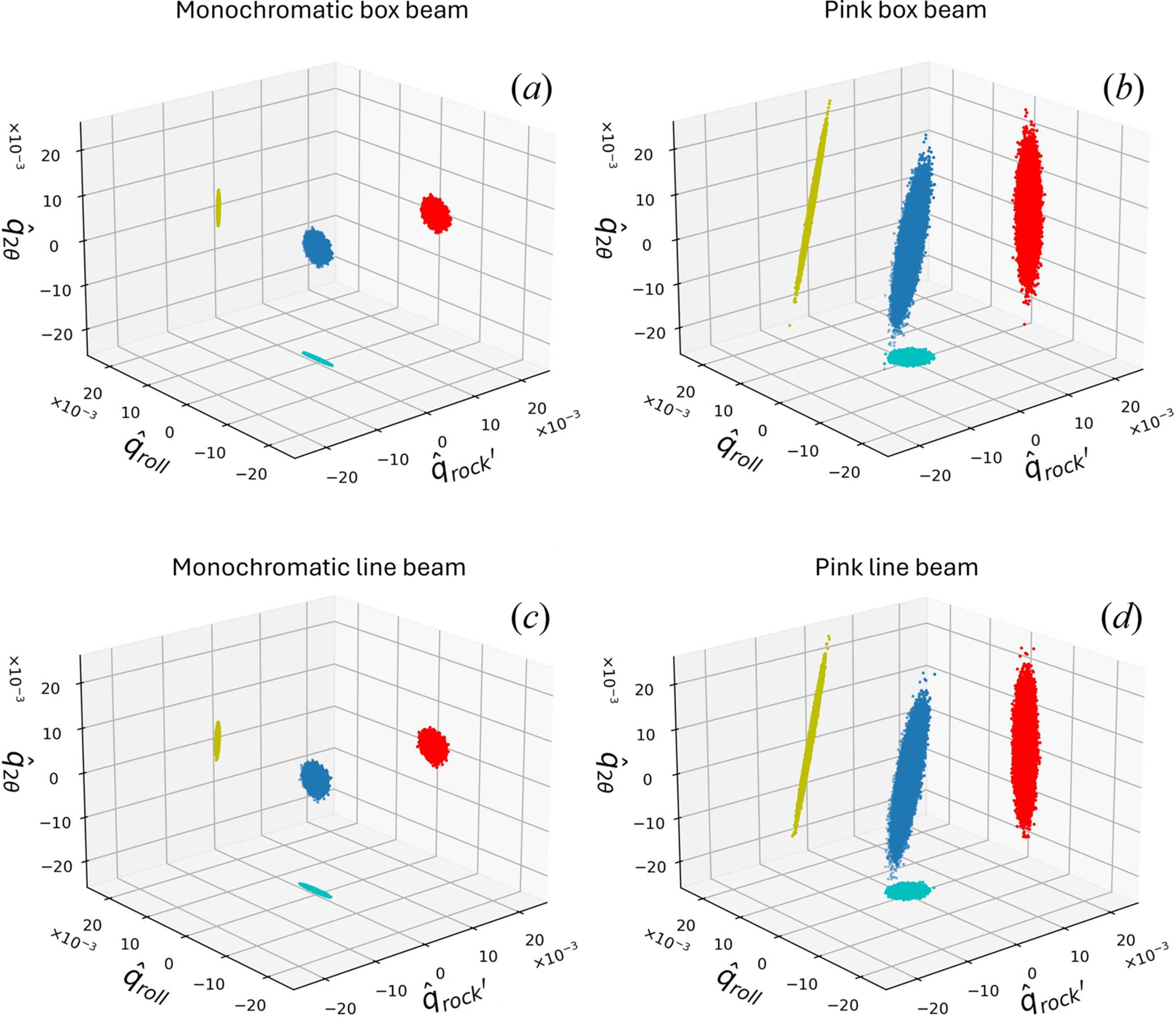

Reciprocal space resolution function for a box beam (quasi-parallel illumination) with monochromatic (a) and pink (b) beams, and line beam (condensed illumination) for monochromatic (c) and pink (d) beams. In all cases, the reciprocal space is normalized, cf. equation (11

). The resolution function is displayed as a point cloud in three dimensions in blue, while the red, yellow and cyan point clouds are projections onto 2D planes. The three principal axes of the imaging coordinate system (i.e. corresponding reciprocal space axes) are defined as ( $[\hat{q}_{\rm {rock}^{\prime}}]$ , $[\hat{q}_{\rm {roll}}]$ , $[\hat{q}_{2\theta}]$ ), where $[\hat{q}_{2\theta}]$ corresponds to the longitudinal (axial strain) direction.
