Figure 4

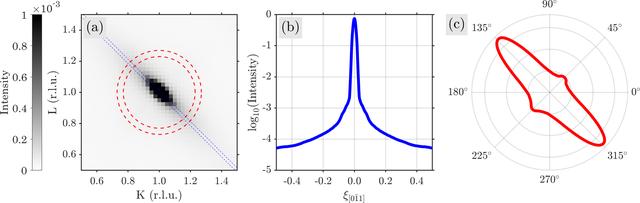

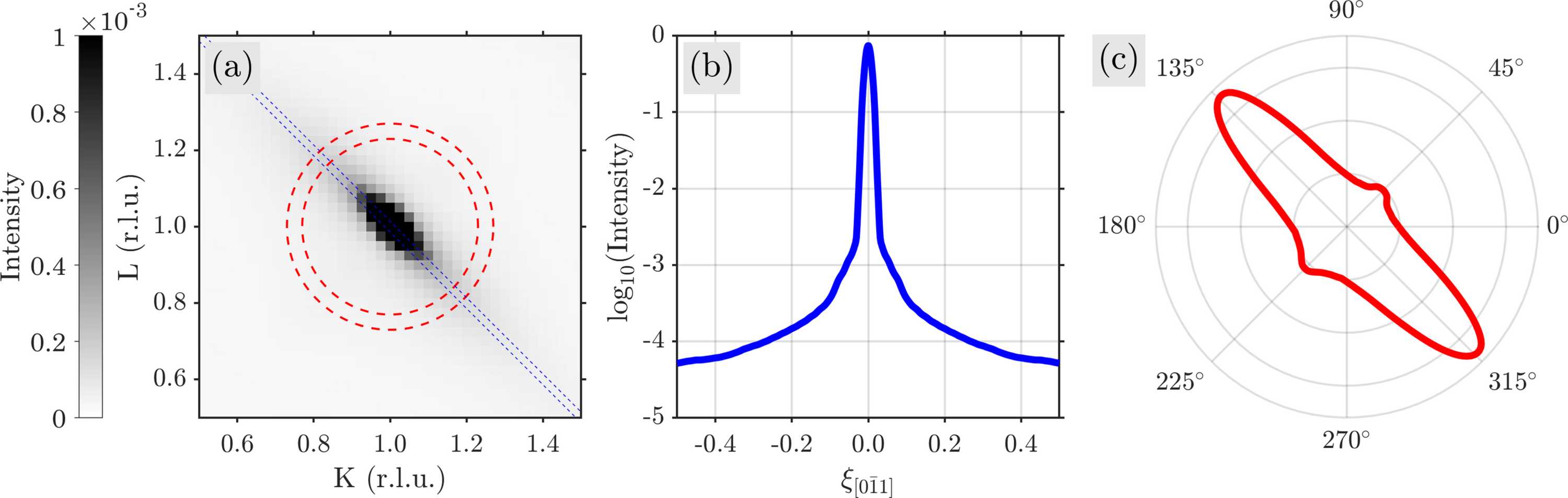

Details of the diffuse-scattering intensity around the 011 Bragg reflection from the combined dataset (SNR < 1000 criterion). The figure consists of three panels that present complementary aspects of the reconstructed intensity distribution in the 0KL reciprocal lattice plane. (a) Reconstructed 2D intensity map around the Bragg peak, displayed over ±0.5 r.l.u. The red circular dashed region marks the radial zone used for angular averaging, and blue dashed lines indicate the strip used to extract a one-dimensional profile along the diagonal direction. (b) Logarithmic intensity profile along the [0KK] * reciprocal direction, averaged over a finite-width strip perpendicular to the path. (c) Polar plot of the angular dependence of the diffuse intensity, extracted from the region shown in (a).
