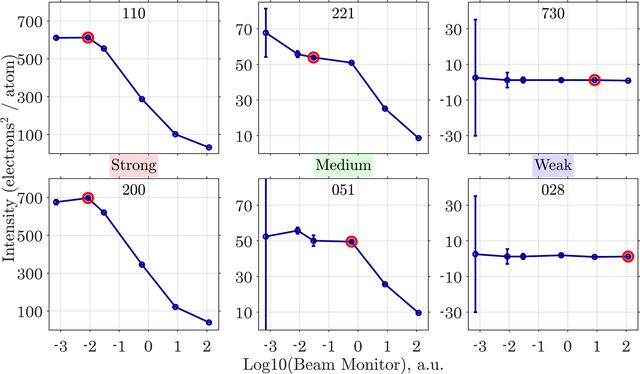

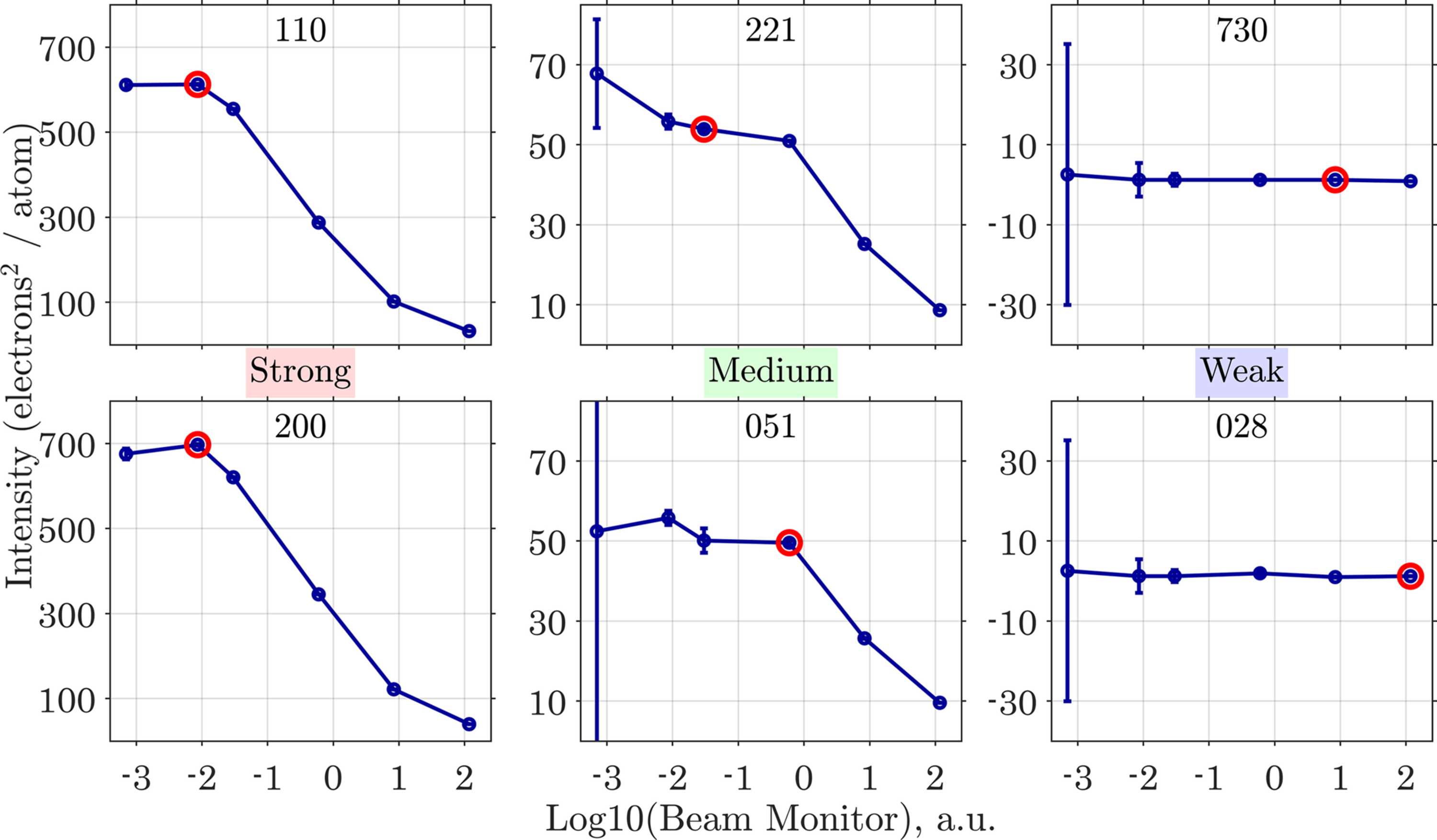

Figure 8
Dependence of reflection intensities on the primary-beam monitor value B, shown on a logarithmic scale, for three groups of representative reflections: strong (110, 200), medium (221, 051) and weak (730, 028). Each panel displays the integrated intensity $[I_{hkl}^{{\rm obs}}]$ with error bars as a function of $[{\log _{10}}B]$ . For strong reflections, intensities decrease at higher beam-monitor values due to detector saturation. Conversely, weak reflections exhibit low signal-to-noise ratios at low flux. Red circles indicate the absorber setting automatically selected for each reflection by the procedure used to optimize data quality for structural refinement.
