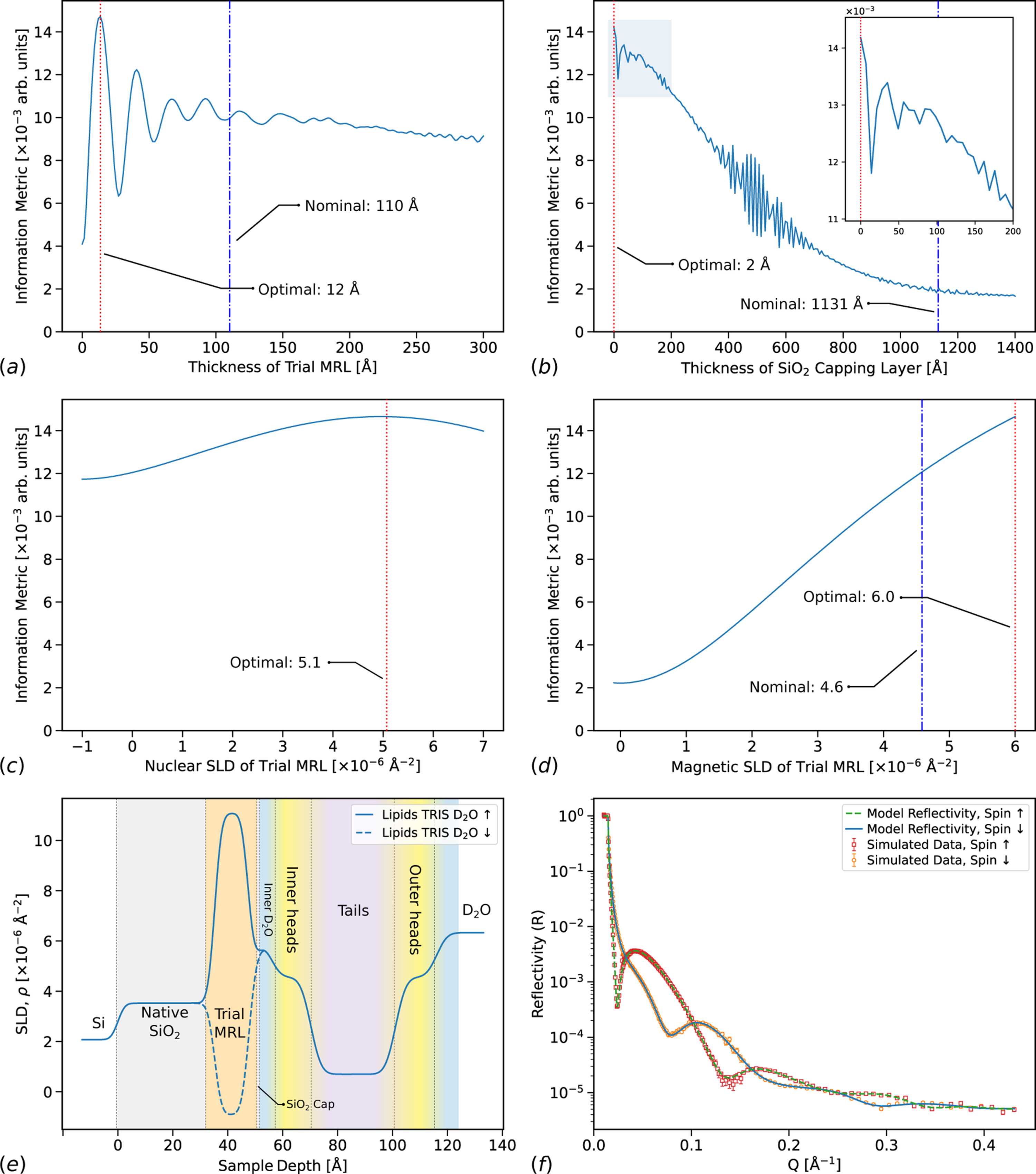

Figure 3
As in Fig. 2[link], the information metric Mathematical equation quantifies the FI-predicted constraint on the SLB parameters where higher values are more informative. Plots of I as a function of (a) trial MRL thickness and (b) SiO2 capping layer thickness; (c) nuclear and (d) magnetic SLD of the trial MRL; (e) the resulting SLD profile after optimization; and (f) corresponding model reflectivity and simulated data for spin-up and -down. The optimal nuclear SLD of the trial MRL reduced to 5.1 × 10−6 Å−2 from a nominal value of 7.8 × 10−6 Å−2 for Fe. On the other hand, the optimal magnetic SLD of the trial MRL reached 6.0 × 10−6 Å−2, the upper bound of the varying parameter range, in contrast to 4.6 × 10−6 Å−2 for Fe from the measurements performed with POLREF.
