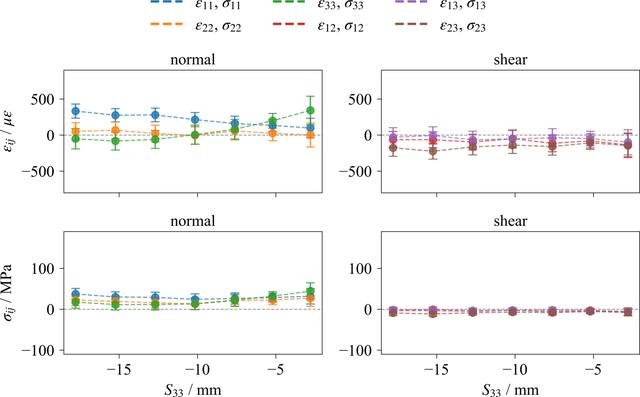

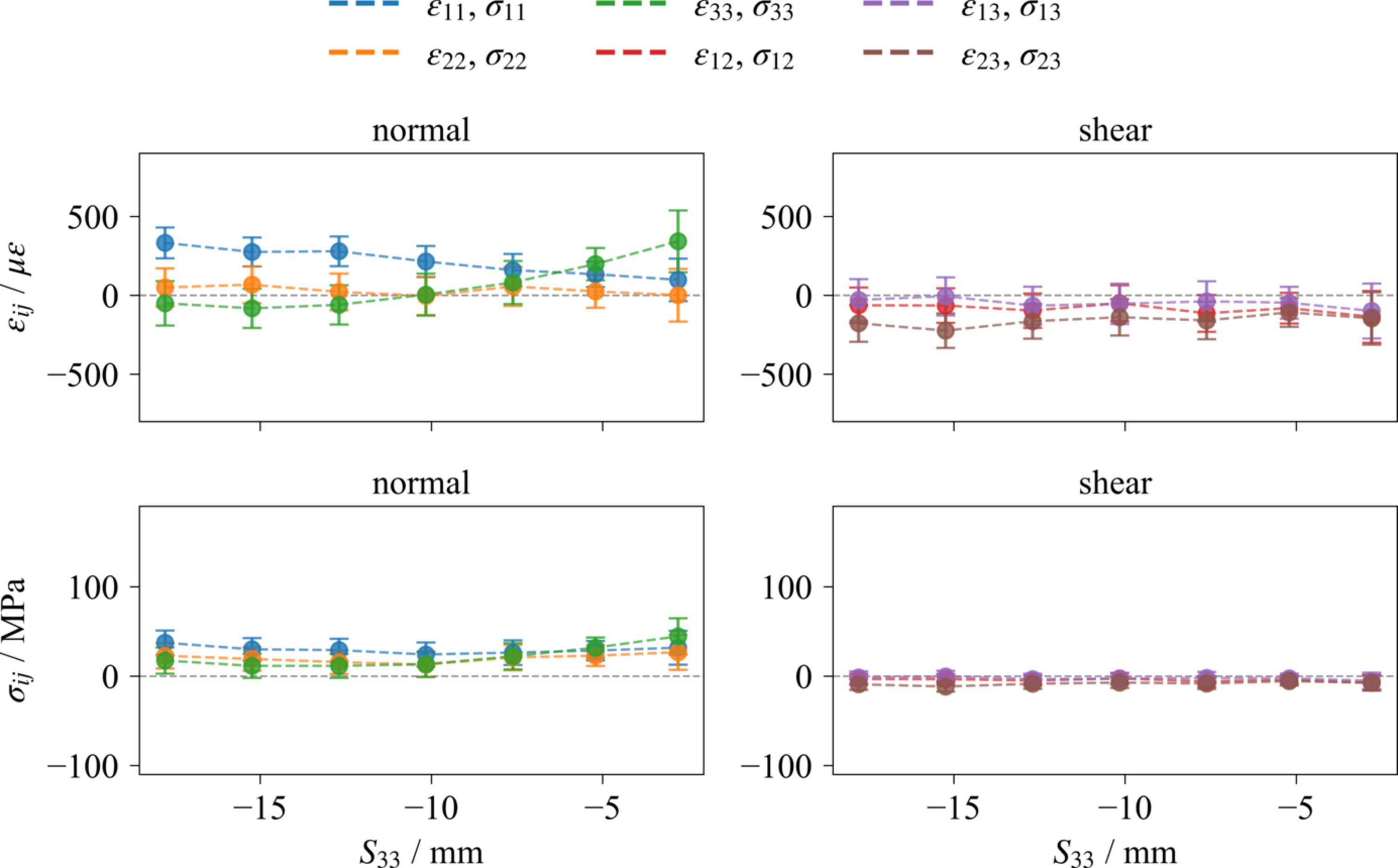

Figure 15
Results of the strain/stress solutions and their errors after inflating measurement uncertainties to account for hidden biases. The uncertainties are two to three times larger than those of the un-inflated least-squares estimator, yet they are similar to the three-measurement solutions. This implies that the three-measurement uncertainties are too small since the measurement biases could not be evaluated. In addition, the uncertainty appears to scale with the degree of orientation-dependent scatter. This is evident at the top-most location (z = −2.8 mm), where the deviations and residuals exhibited a greater spread in both the six- and 36-measurement analyses.
