Figure 3

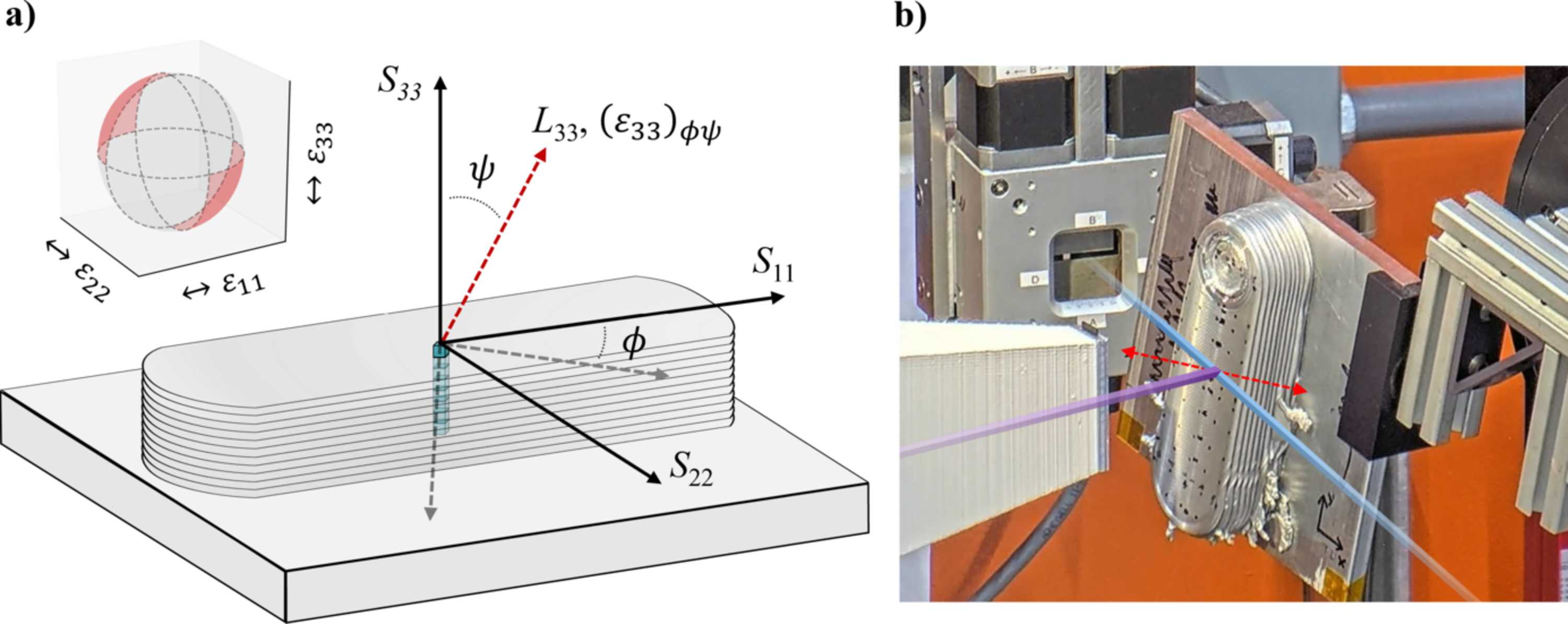

(a) Conventions used for the sample and diffraction coordinate systems. The inset in the top left-hand corner shows the region of strain space sampled (0° < ϕ < 90°, 90° < ψ < 180°). Each approximately isometric gauge volume is highlighted in blue. (b) Photograph of the AFSD sample within the neutron diffraction setup, which consists of multiple rotation stages mounted in tandem to rotate the sample about the center of each gauge volume. The transmitted beam, diffracted beam and diffraction (strain) vector are shown in blue, purple and red, respectively.
