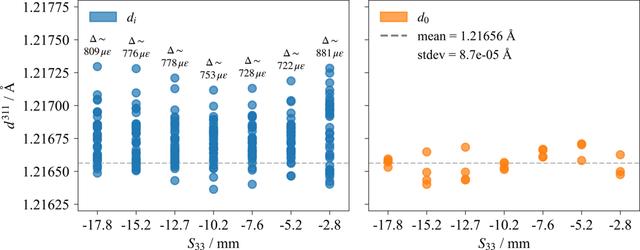

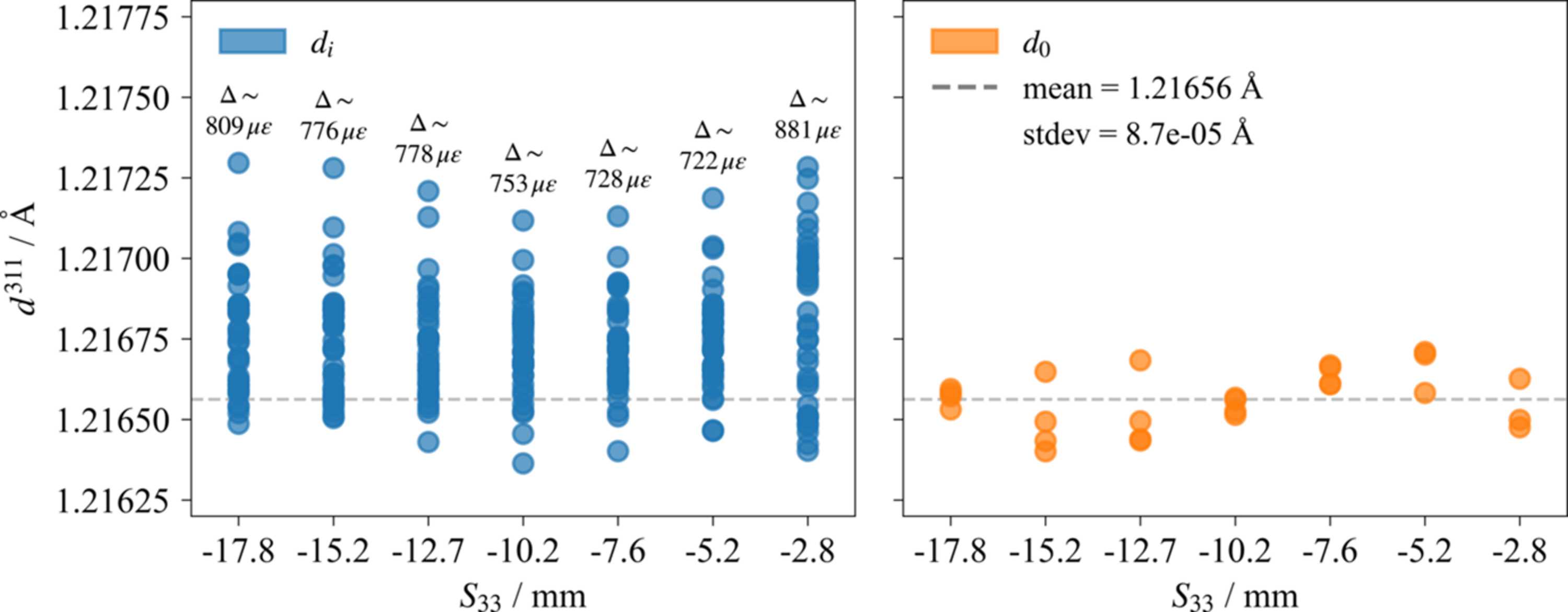

Figure 5
Scatterplots of (left) all measured sample lattice parameters and (right) reference lattice parameters. The total variation in sample lattice parameters, denoted above each location in microstrain equivalent, is an order of magnitude greater than the variation in the reference parameters. The average reference lattice parameter used in all calculations is shown with a dashed line.
