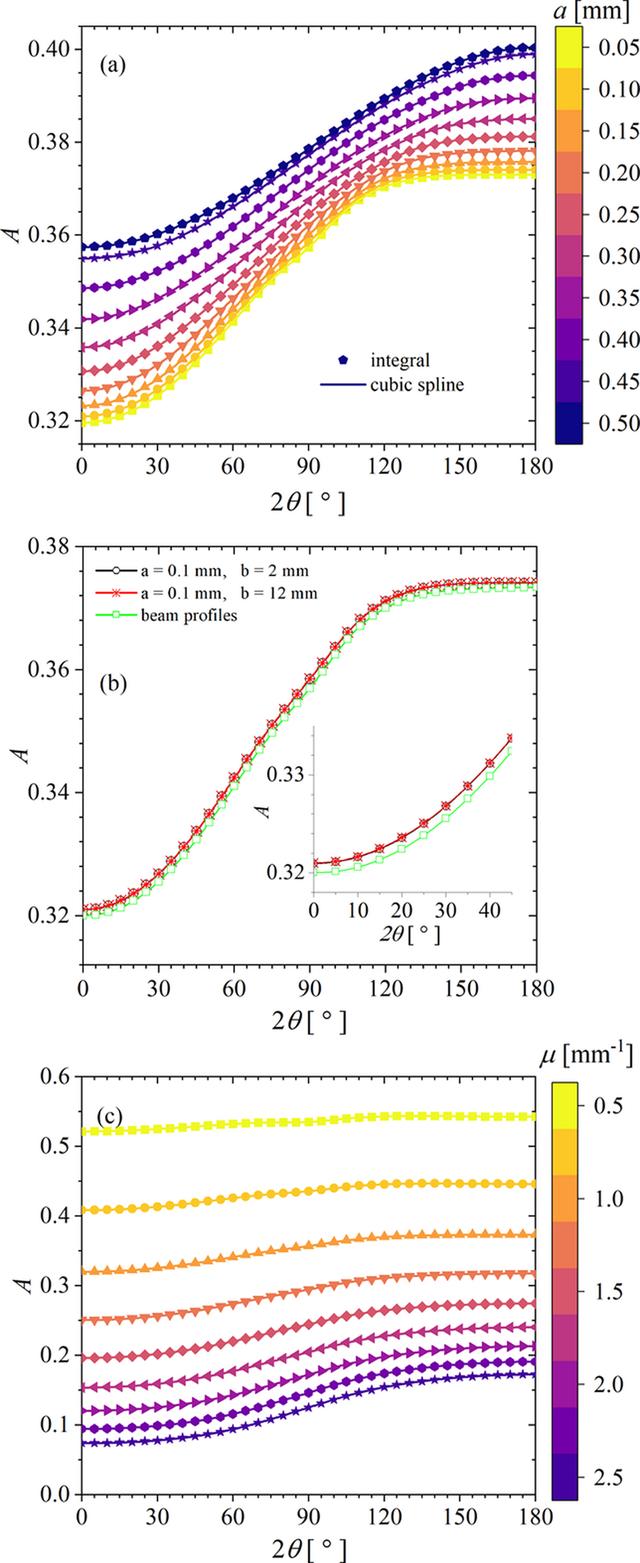

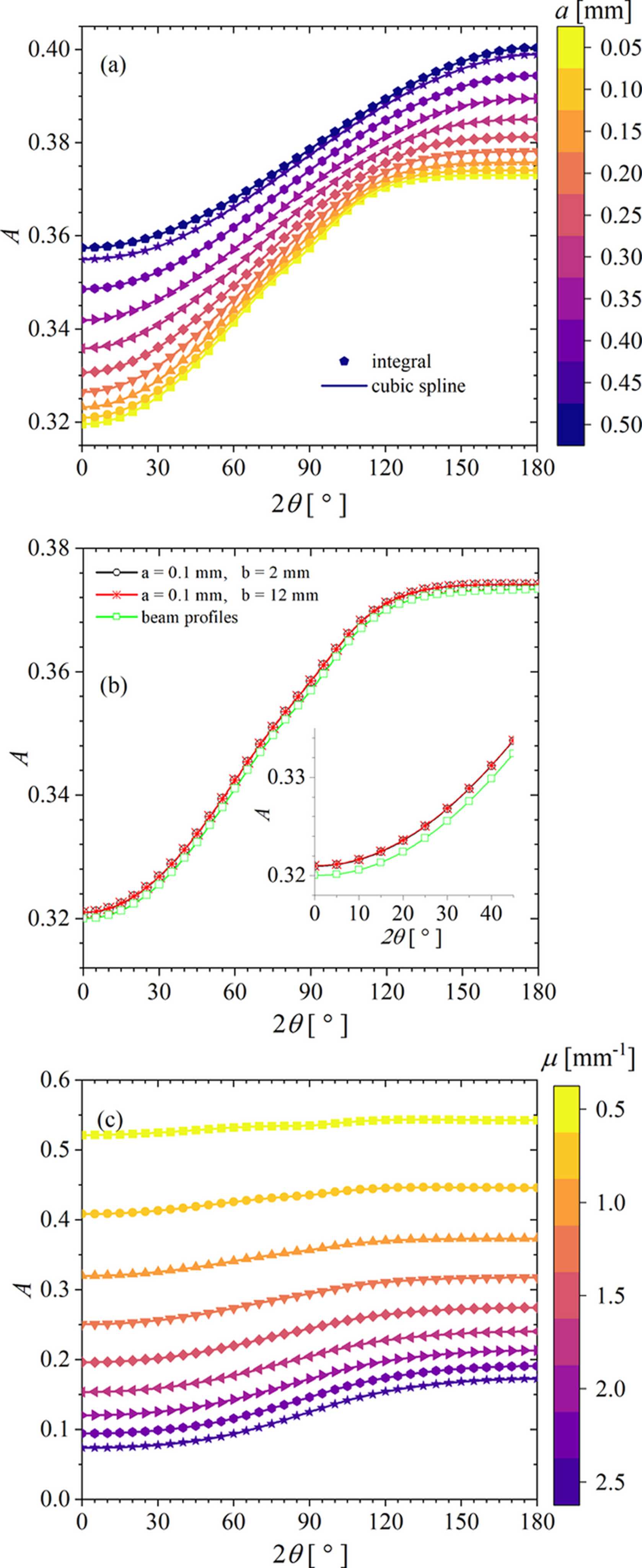

Figure 4
(a) The effect of increasing the primary beam half-height a at constant beam half-width b = 12 mm, capillary-wall thickness t = 0.01 mm and linear attenuation coefficient μ = 1.0 mm−1. (b) The effect of changing the beam half-width b and including the experimental beam profiles, all at constant t = 0.01 mm and μ = 1.0 mm−1. (c) The effect of increasing the linear attenuation coefficient μ on the angular dependence of the transmission coefficient A(2θ) at constant a = 0.1 mm, b = 12 mm and t = 0.01 mm.
