![[Figure 5]](jl5129fig5mag.jpg)
|
|

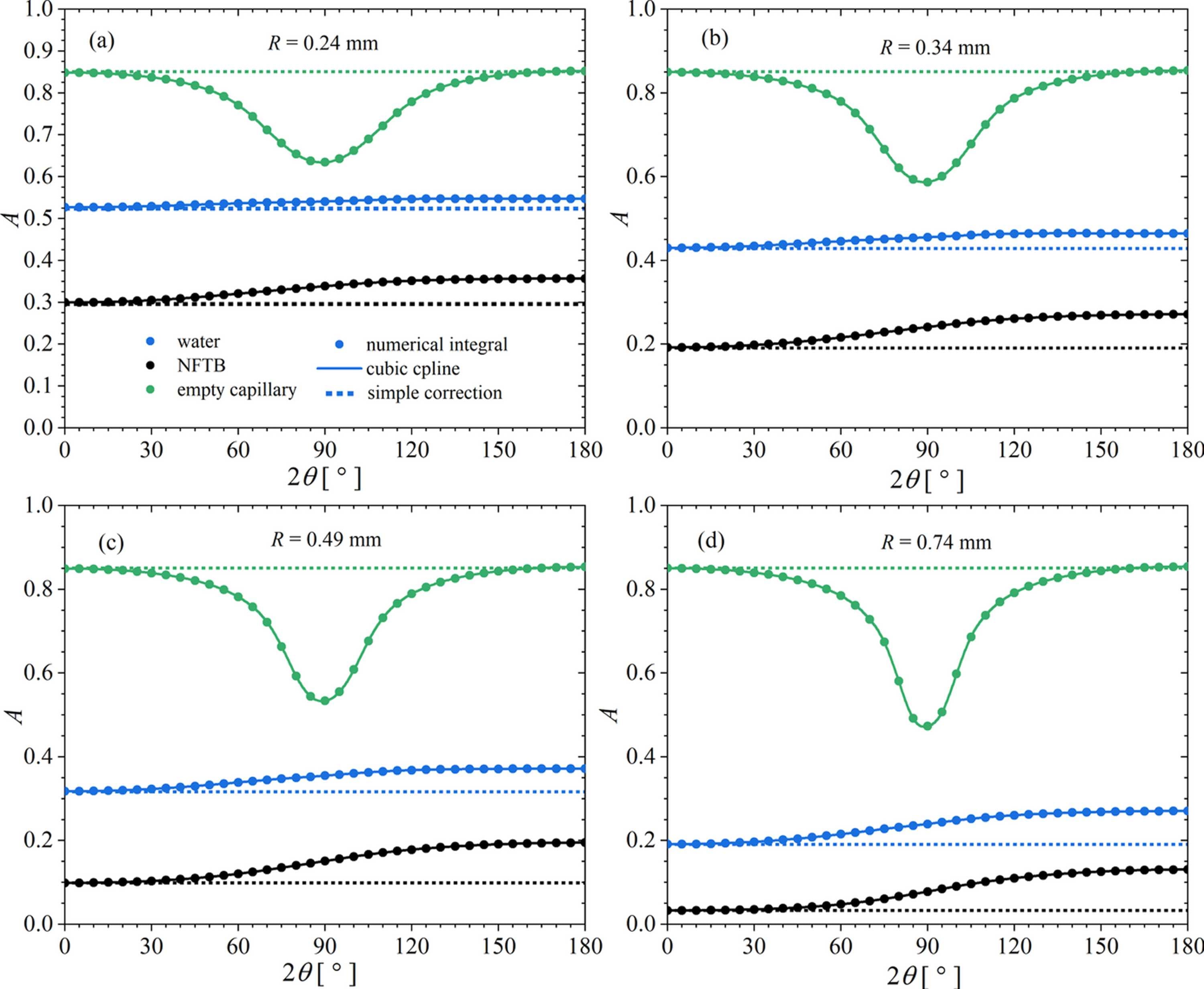

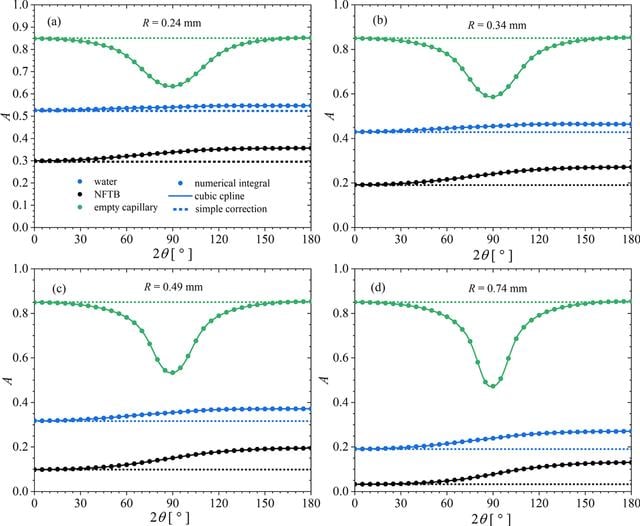

Figure 5
The angular dependence of the transmission coefficient A(2θ) at constant a = 0.1 mm, b = 12 mm, t = 0.01 mm, μquartz = 8.099 mm−1, μwater = 1.01 mm−1 and μNFTB = 2.20 mm−1 for the empty capillary (green solid line), water (blue solid line) and NFTB (black solid line) compared with the corresponding simplistic model values (dotted lines) for capillary radii of (a) 0.24 mm, (b) 0.34 mm, (c) 0.49 mm and (d) 0.74 mm. |
![[Figure 5]](jl5129fig5.jpg)
