Experimental observation of grazing-incidence X-ray back-diffraction with large angular dispersion

Chen, S.-L.; Soo, Y.-L.; Lin, B.-H.; Chuang, T.-H.; Weng, S.-C.; Tsai, Y.-W.; Tang, M.-T.

doi:10.1107/S1600576726009246

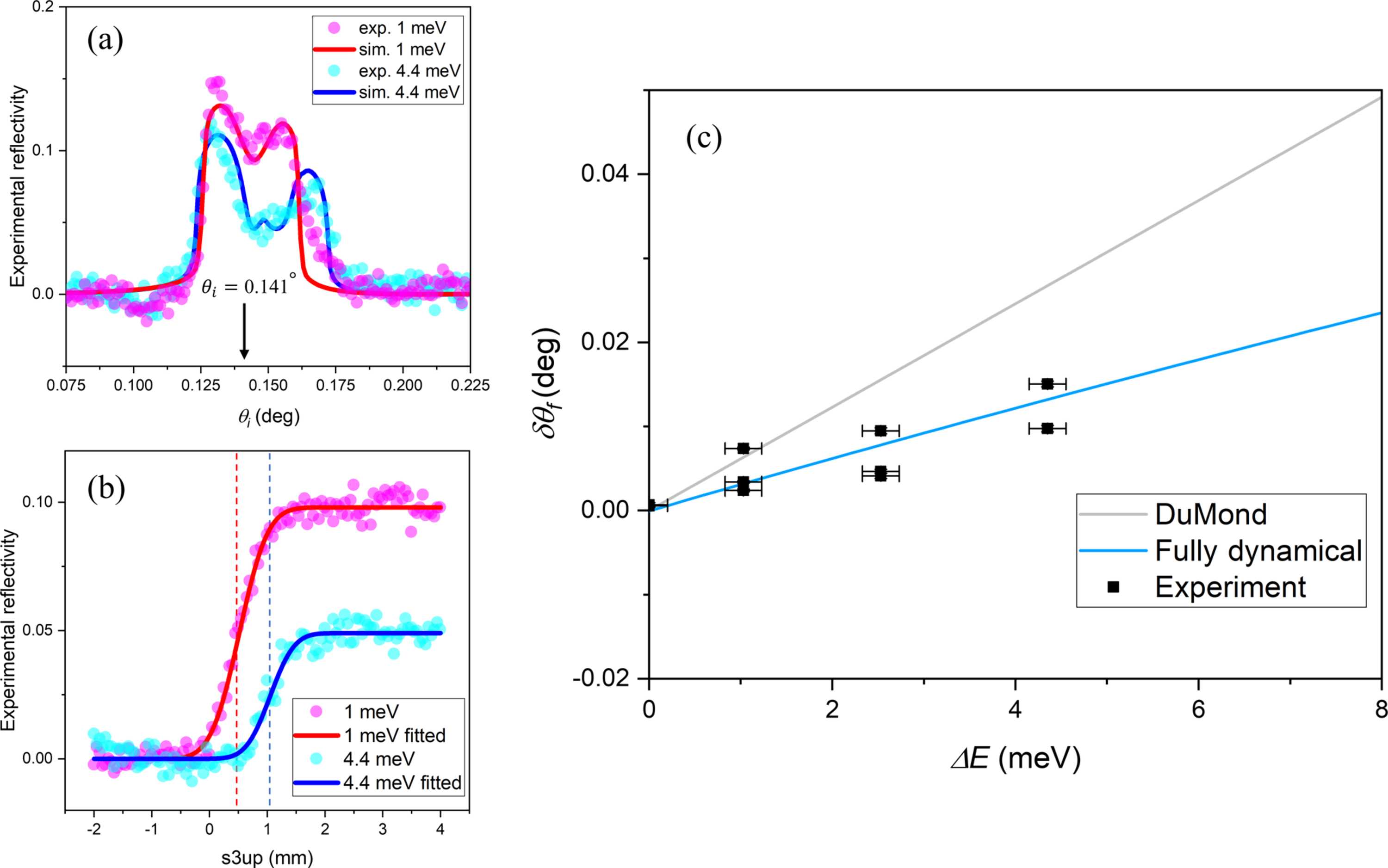

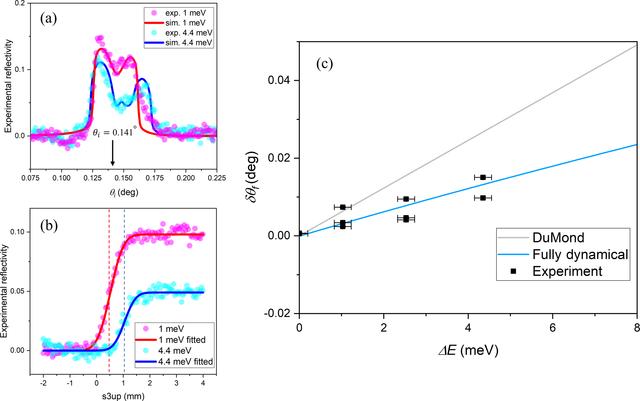

Figure 4
Determination of the ADR. (a) Experimental (symbols) and simulated (solid lines) back-diffraction profiles for photon-energy offsets of 1.0 and 4.4 meV. (b) Knife-edge scans used to determine the angular position of the back-diffracted beam. The beam centre was obtained from the derivative of the intensity profile. (c) Measured beam deviation as a function of photon-energy offset compared with predictions from the conventional DuMond analysis and the full dynamical calculations.
