Bridging the small-angle X-ray scattering–X-ray diffraction gap in disordered layered materials: the CLADIFFMOD unified framework

Oueslati, W.

doi:10.1107/S1600576726008939

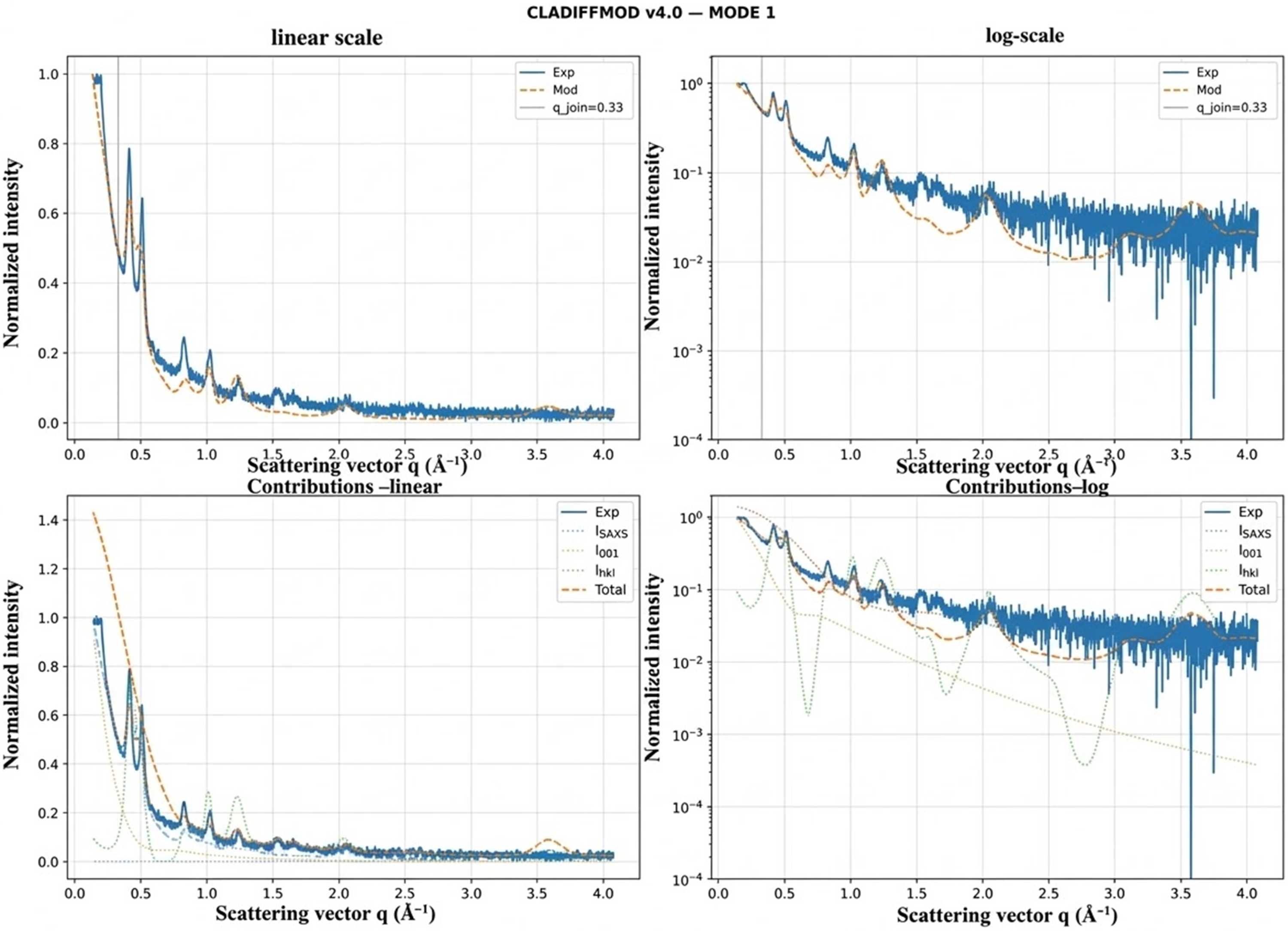

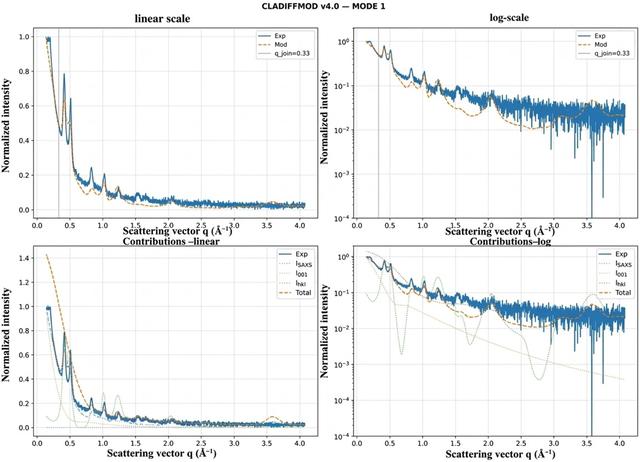

Figure 5
Experimental and calculated scattering intensities for sample S2 (54% RH, equilibrium conditions). The 1W–2W interstratification is described using a Markov-chain stacking model. The shape and asymmetry of the 001 region and the diffuse background between reflections are reproduced, indicating the presence of correlated intra-stack heterogeneity.
