Figure 5

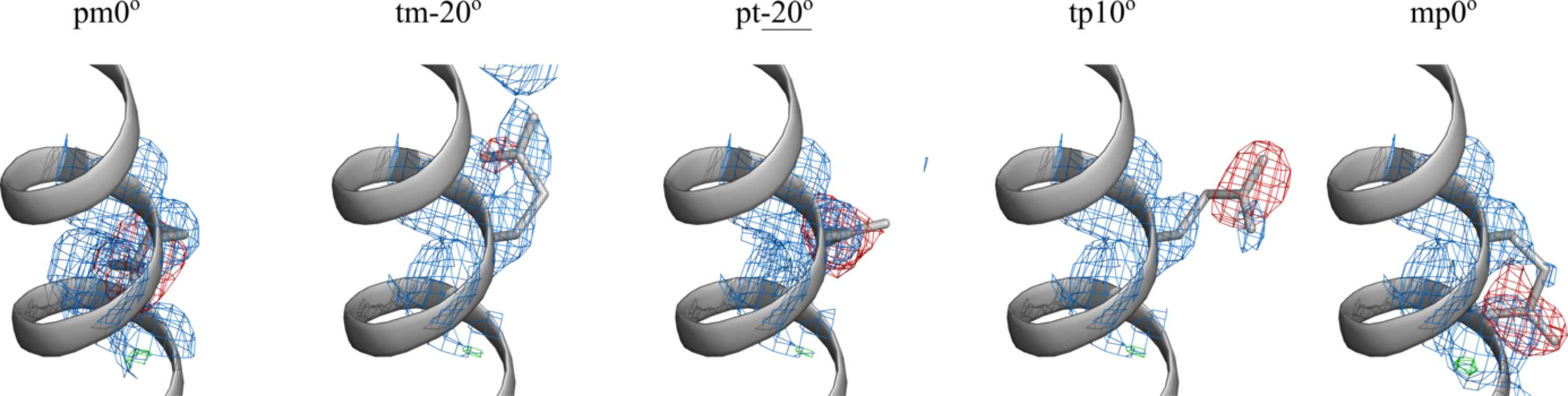

Side chain of residue Glu53 in the five specially prepared models of LCB2. The models represent the fully refined structure 8c3e, where the Glu53 side chain has been placed in pm0°, tm-20°, pt-20°, tp10° and mp0° conformations (as indicated in the plot). Electron density maps 2mFo − DFc are plotted at the level of 1σ (blue mesh) and the differential maps mFo − DFc are plotted at the level of 3σ (green/red mesh). The tm-20° model can be further refined, improving the agreement with its associated electron density (not shown).

IUCrJ
Volume 12| Part 4| July 2025|
ISSN: 2052-2525
https://doi.org/10.1107/S2052252525005123
