Time-resolved serial synchrotron and serial femtosecond crystallography of heme proteins using photocaged nitric oxide

Smyth, P.; Jaho, S.; Williams, L.J.; Karras, G.; Fitzpatrick, A.; Thompson, A.J.; Battah, S.; Axford, D.; Horrell, S.; Lučić, M.; Ishihara, K.; Kataoka, M.; Matsuura, H.; Shimba, K.; Tono, K.; Tosha, T.; Sugimoto, H.; Owada, S.; Hough, M.A.; Worrall, J.A.R.; Owen, R.L.

doi:10.1107/S2052252525006645

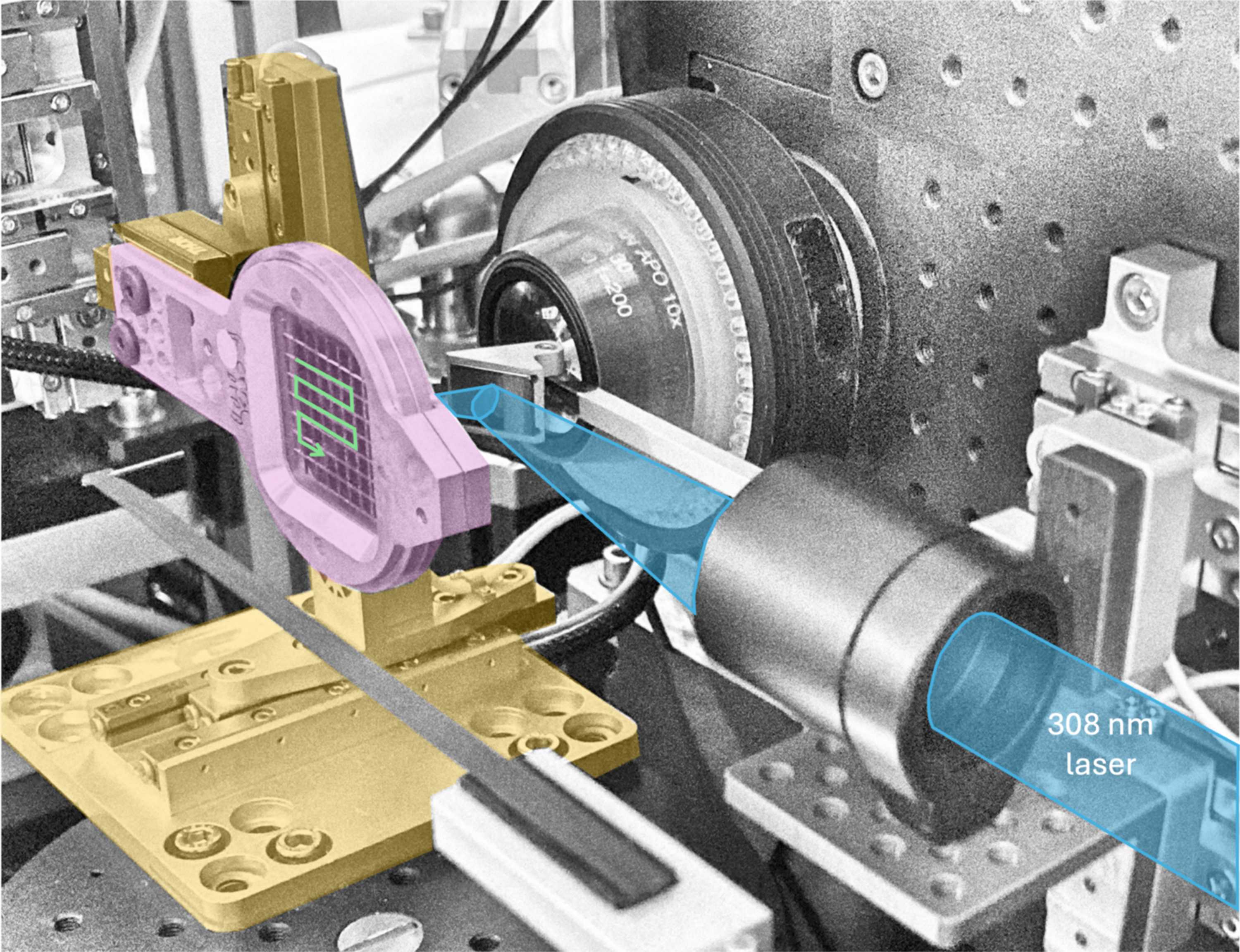

Figure 1
Fixed target motion and laser light delivery hardware in place at Diamond beamline I24, with the chip highlighted in pink, motion stages in gold and laser light path shown in blue. A similar experimental setup was utilized at SACLA, shown in Fig. S5.
