Highlighting radical sites through polarized neutron scattering from AFP-modulated polarized protons

Hautle, P.; Zimmer, O.; Jouve, H.M.; Stuhrmann, H.B.

doi:10.1107/S2052252525005871

Figure 11

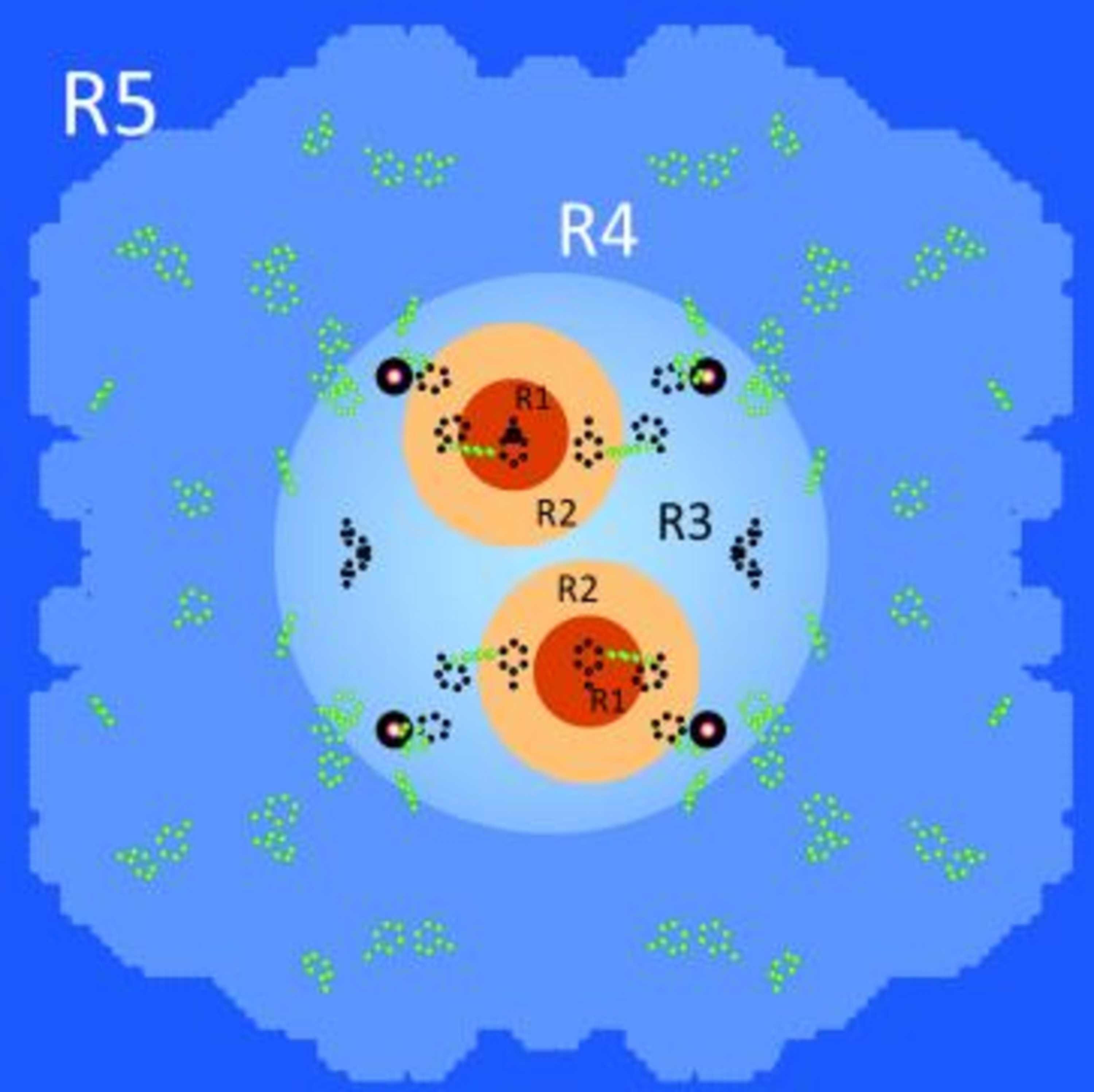

The five reservoirs of the tetramer catalase molecule and its tyrosines (shown by their phenyl rings, in light green). The reservoir R3 includes the four heme groups presented by their iron atoms and the potential tyrosyls (dark blue) as proposed by Zimmer et al. (2016

). The red and orange spheres are centred at the sites of Tyr369. The reservoirs in blue are assumed to be accessible to AFP.
