Figure 14

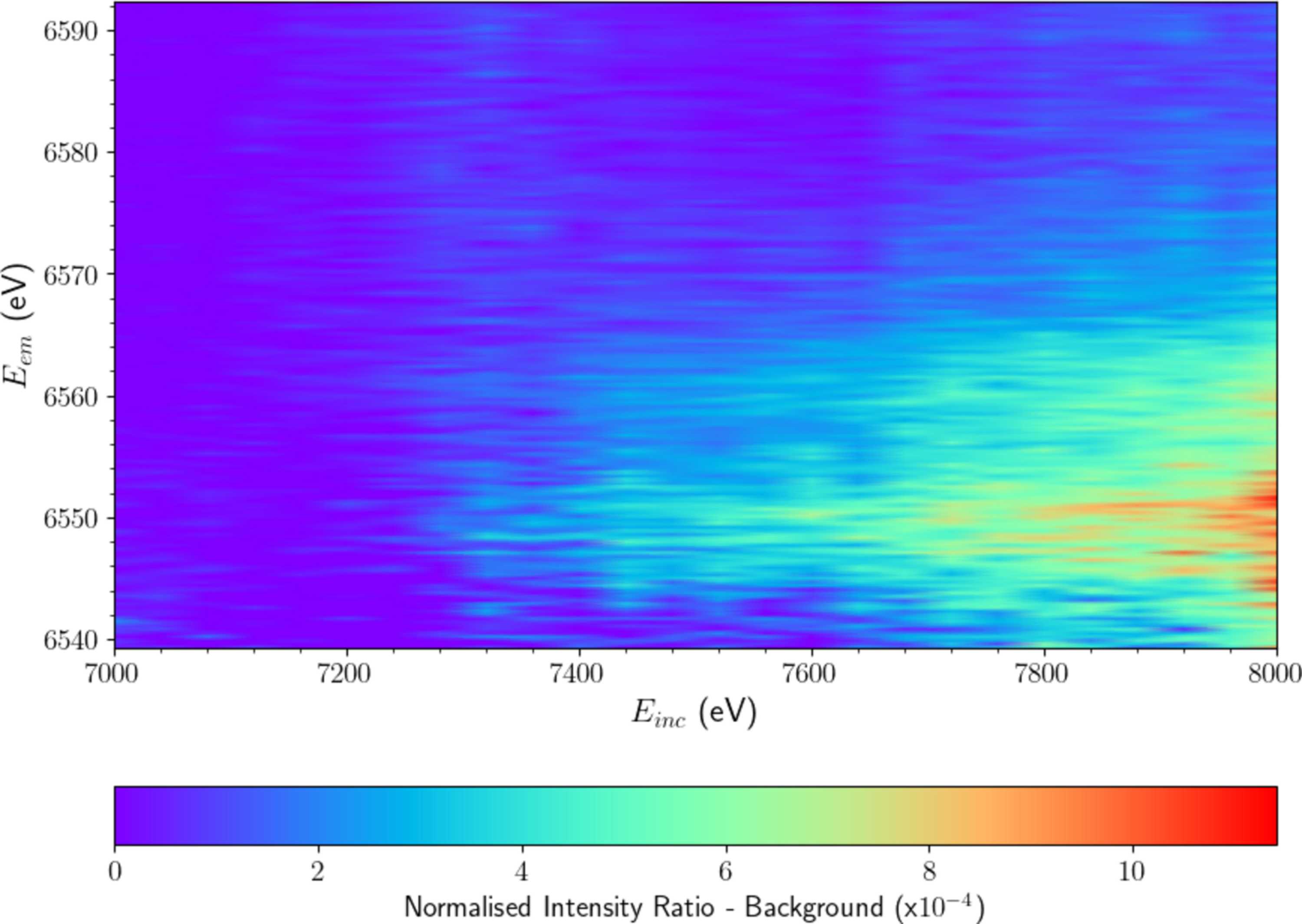

XR-HERFD map after subtraction of the Kβ background using all 14 analyser crystals. The satellite structure and evolution are difficult to resolve. A closer analysis of the fluorescent intensities from each analyser crystal revealed that six of the analysers delivered a signal of poor statistical quality, significantly increasing the signal-to-noise ratio. These six crystals where excluded from the final processed data seen in Fig. 5, resulting in a much clearer image of the satellite's structure and evolution.
