Figure 15

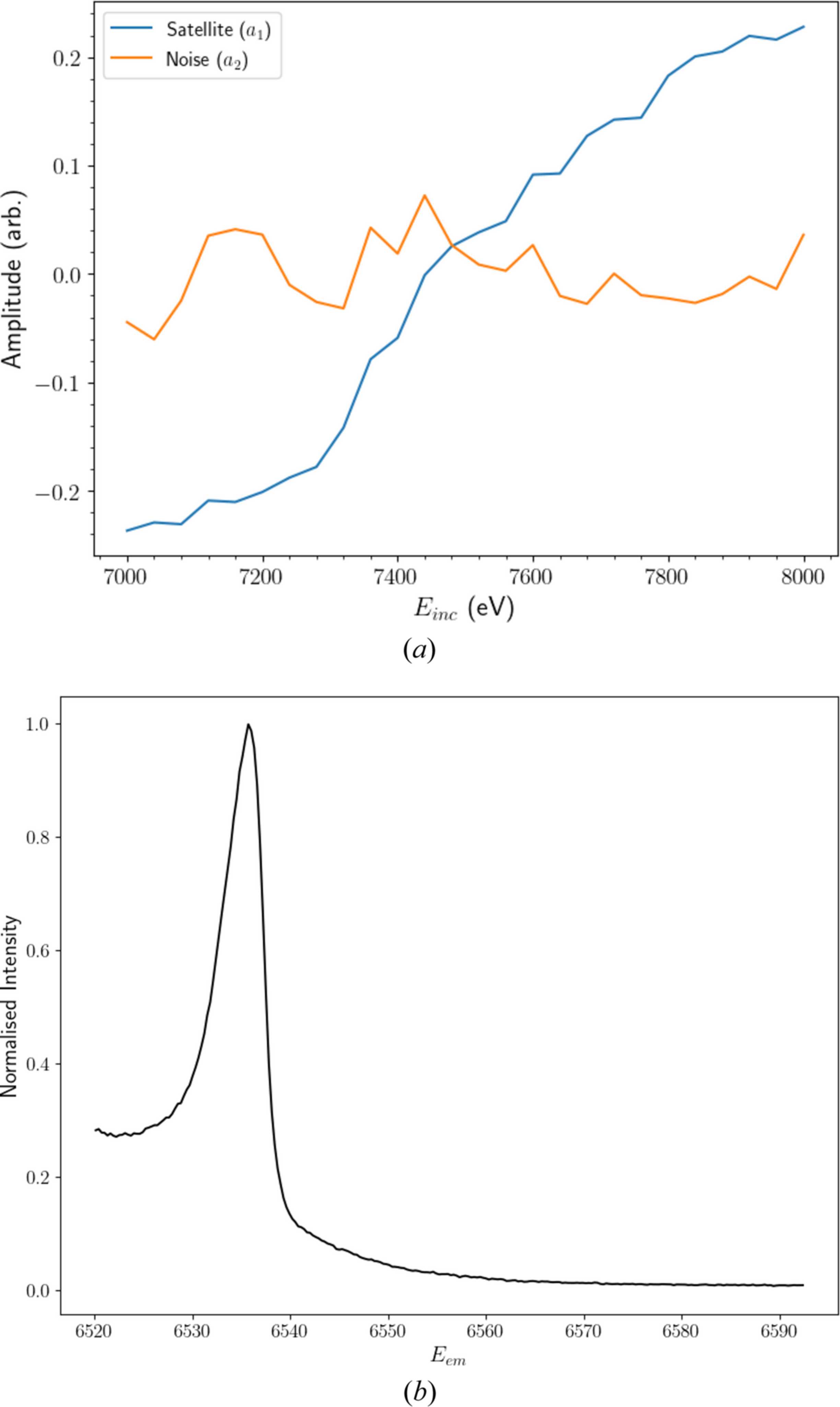

(a) Amplitude of the satellite and correlated noise PCs obtained without specifying a predefined mean in PCA. While the form of a1 closely resembles that shown in Fig. 9, the amplitudes are shifted, evolving from negative to positive values. This is a poor representation of the satellite's evolution. (b) Stationary background profile (μ′) of the PCA data set. In the results presented in Section 5[link], variance across X was measured from μ′, as opposed to the true mean μ, to measure the evolution of satellite intensities accurately beyond the onset. μ′ constitutes a significant improvement on the background profile depicted in Fig. 2(b), as there is a significant reduction in noise within the satellite region.

IUCrJ
Volume 12| Part 5| September 2025| Pages 548-562
ISSN: 2052-2525
https://doi.org/10.1107/S2052252525005573
