Figure 3

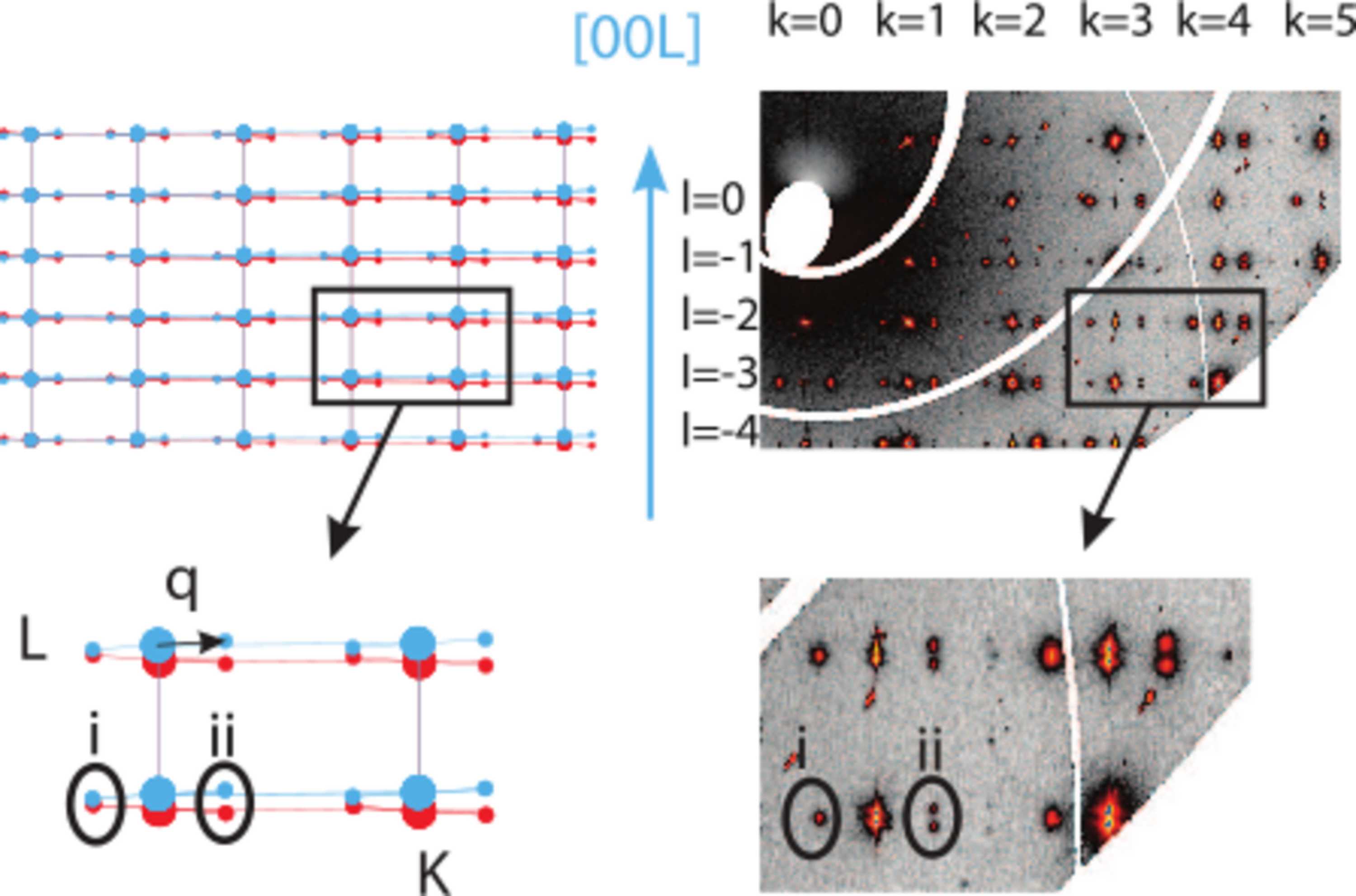

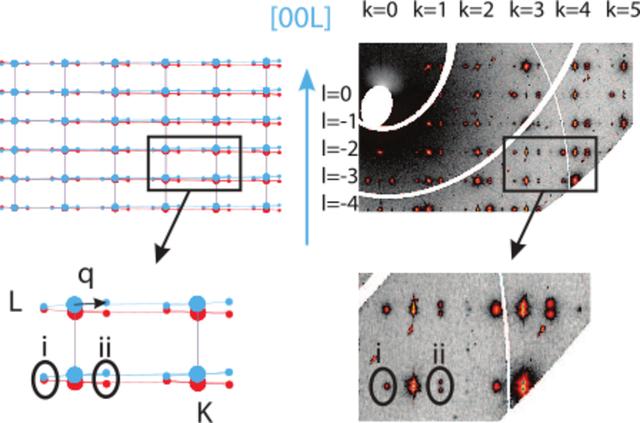

Right: (0KL) plane measured at the ESRF for DS in the CDW state at 155 K. The magnified areas i and ii show the absence of splitting of the −1 satellite and the splitting of the +1 satellite, respectively, observed for high K. Left: model for the (0KL) plane built with q = 0.25b* − 0.019c*, the unit cell a = 5.223 Å, b = 6.548 Å, c = 11.191 Å, α = 89.6°, β = γ = 90°, and two domains (blue and red) related by a twofold axis parallel to b.

IUCrJ
Volume 13| Part 4| July 2026|
ISSN: 2052-2525
https://doi.org/10.1107/S2052252526002836
