Figure 6

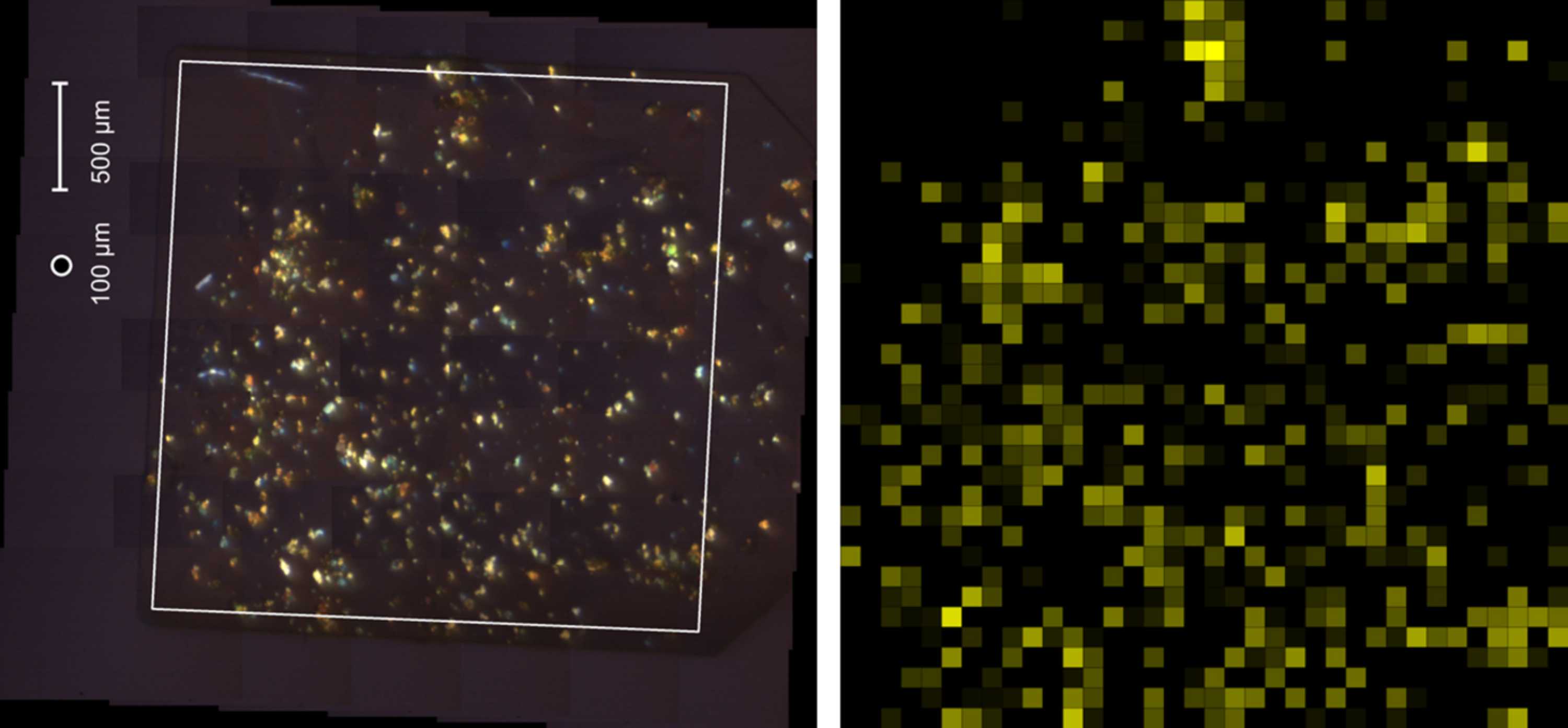

Microscope images of the substrate loaded with 1 (left), compared to the `diffraction map' (right) reconstructed from a `spot-finding' collection, where single diffraction images are taken at each pixel. Pixel brightness (in yellow) corresponds to the number of diffraction spots at that cell, whereas black areas indicate no diffraction spots were recorded. The area on the photograph corresponding to the collection area is denoted by the white box.
