Figure 3

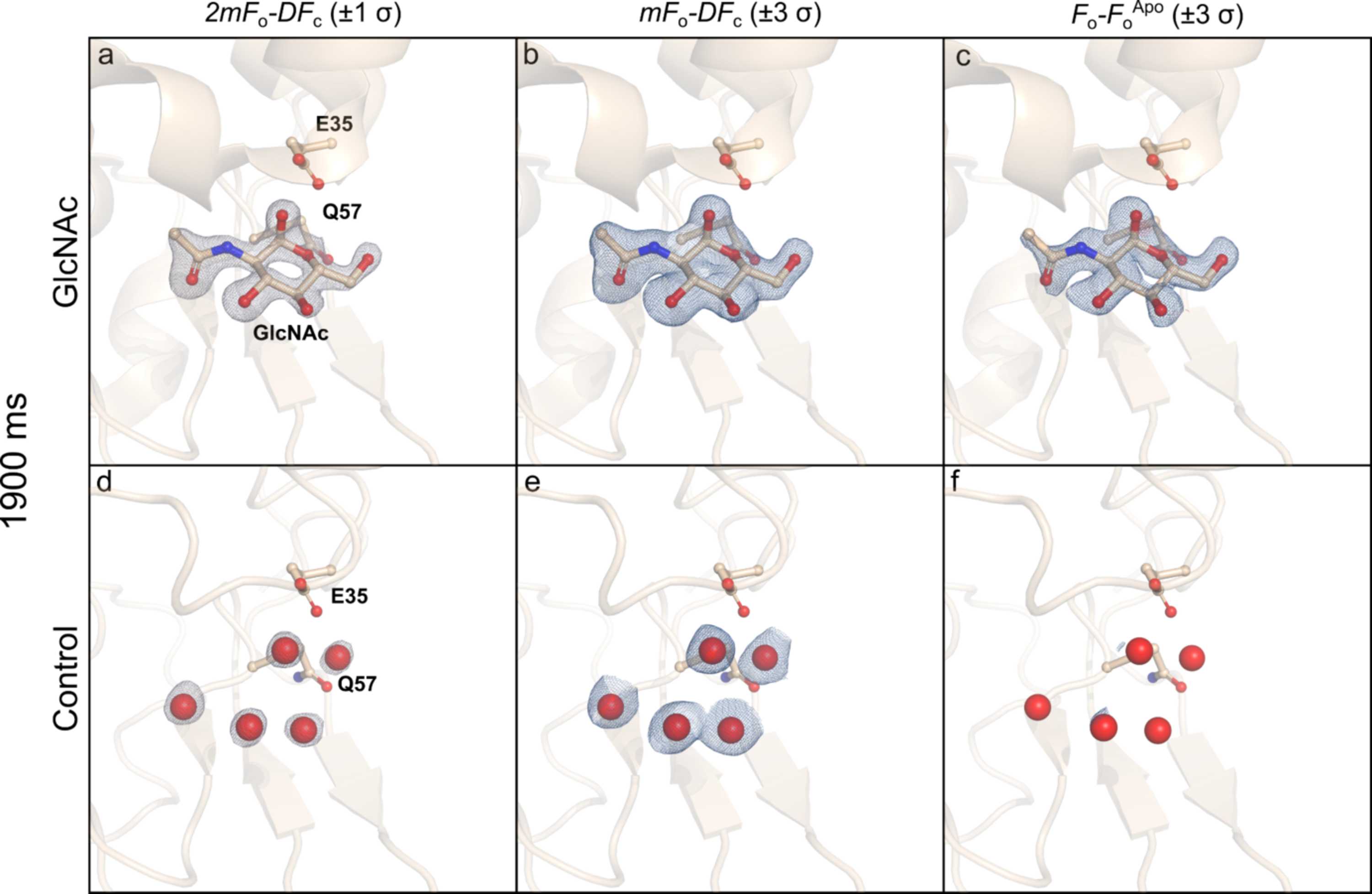

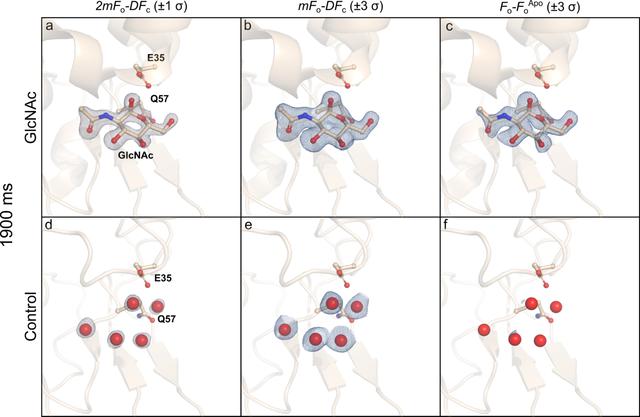

Electron density map analyses of N-acetyl-D-glucosamine (GlcNAc) added to hen egg-white lysozyme (HEWL) microcrystals obtained through drop-on-fixed-target tr-SSX. Tr-SSX maps for HEWL mixed with GlcNAc (226 mM) for 1.9 s (a–f), collected using the Add and Revisit approach at I24 Diamond Light Source determined to 1.69 Å resolution. (a) 2mFo − DFc maps of the active site of the HEWL·GlcNAc complex (radius: 1.5 Å, contour: 1σ); (b) mFo − DFc polder OMIT map (radius: 1.5 Å, contour: 3σ; integrated density: 63.1 e−); (c) Fo1.9 s − FoApo isomorphous difference map (contour: 3σ); (d) 2mFo − DFc map of the interleaved control (i.e. without ligand added; radius: 1.5 Å, contour: 1σ); (e) mFo − DFc polder OMIT map of the interleaved control (radius: 2.0 Å, contour: 3σ); (f) FoControl − FoApo isomorphous difference map (contour: 3σ; integrated density: 0.67 e−). Density colour guidelines: grey modelled density; blue positive density; red negative density.
