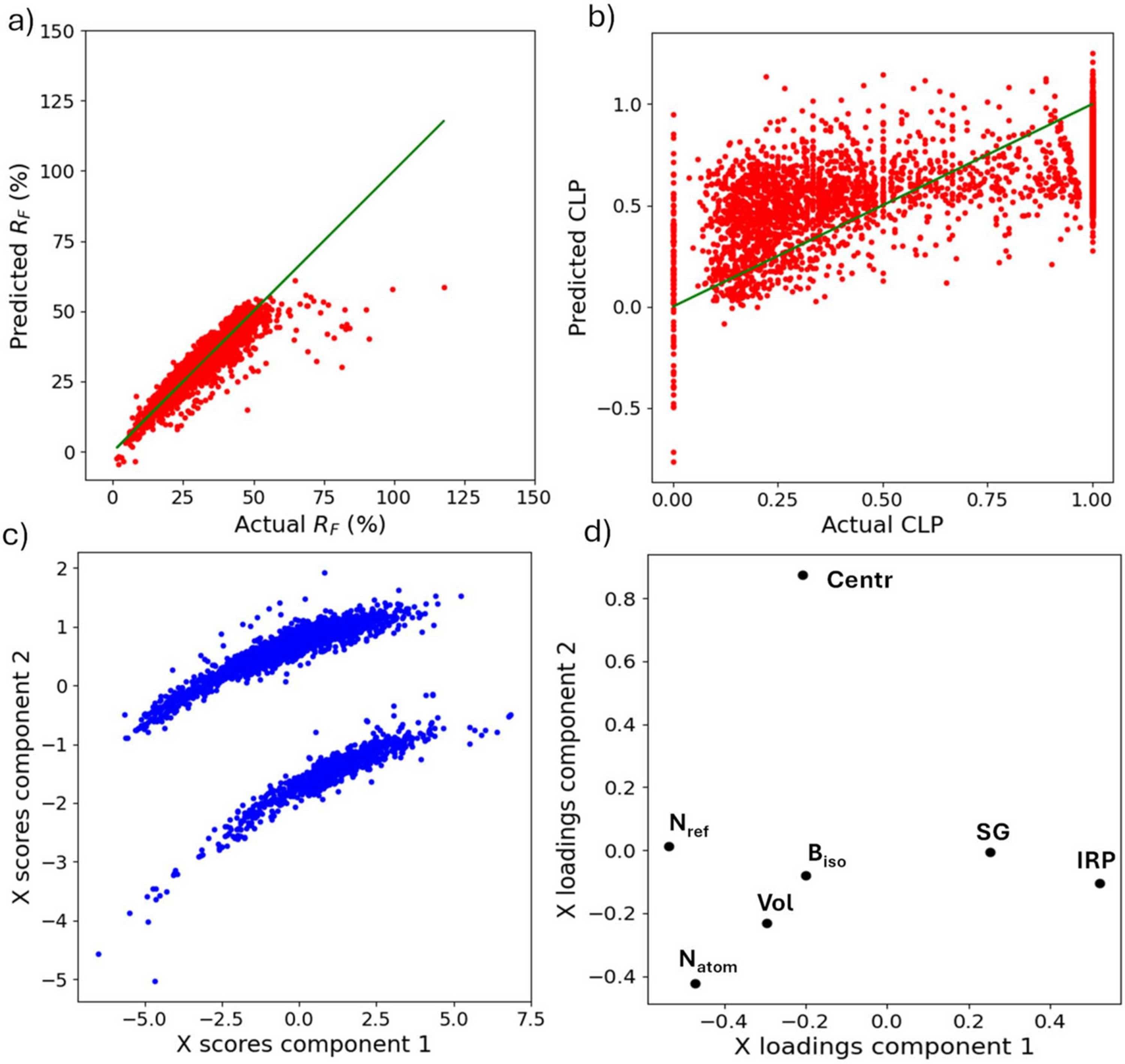

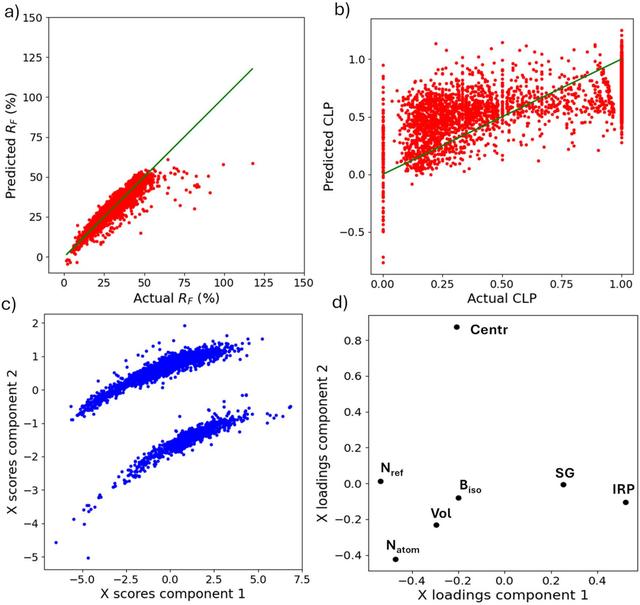

Figure 11
Results of the regression model build on 3313 test simulated XRPD profiles processed by POWnet. Scatter plots of the predicted versus actual values of the (a) RF and (b) CLP Y variables. The bis­ector green line is shown to guide the eye. (c) Scores and (d) loadings plots of the X variables in the first two principal components PC1 and PC2, which explain 52% and 17%, respectively, of the total data variance. The acronyms of the X variables in (d) are the same as those reported in Table 4[link].

IUCrJ
Volume 13| Part 6| November 2026|
ISSN: 2052-2525
https://doi.org/10.1107/S2052252526008444
