Figure 5

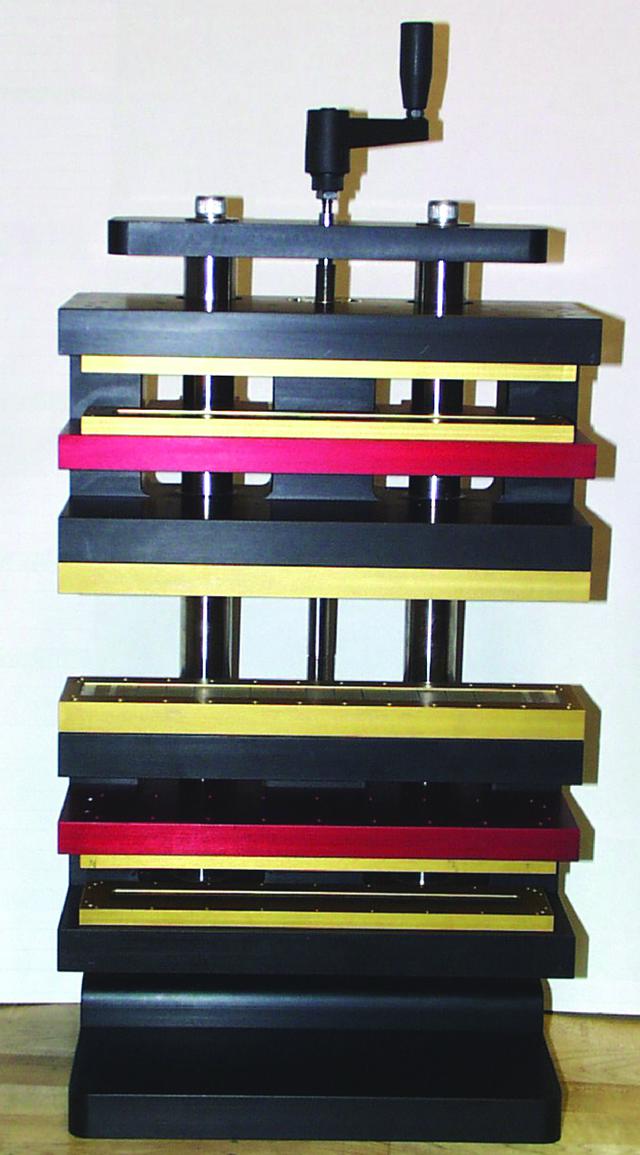

A prototype counterforce system. The black jaws hold the main magnets (gold keepers in center) and the moving counterforce magnets (gold keepers at bottom and top). The red fixtures hold the stationary counterforce magnets. The lead screw is 12.7 mm in diameter with a pitch of 0.787 mm−1. The crank handle is 65 mm from axis to handle axis.
