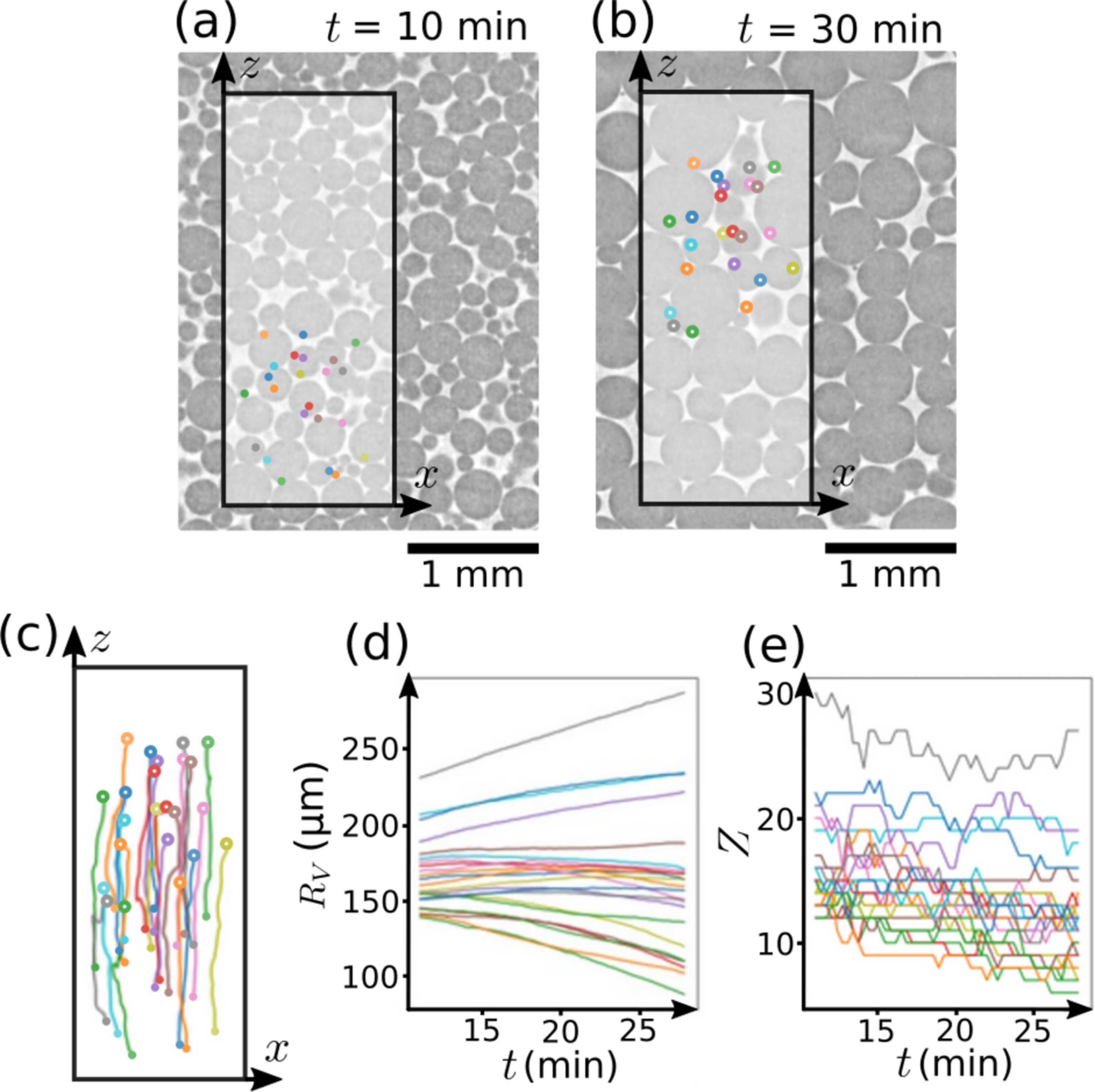

Figure 6
Vertical cross section of an albumin foam at 10 min (a) and 30 min (b) after the beginning of the aging experiment. A set of 23 bubbles are tracked from (a) to (b) states. Their trajectories in the (z, x) plane view are shown in (c). The bubbles are moving up because of drainage: the liquid solution flows down due to gravity while the bubbles are pushed upward. (d e) Equivalent radius RV and coordination number Z as a function of time for each individual bubble in the tracked set. The bubbles are distinguished by their color, which is consistent between the sub-figures.
