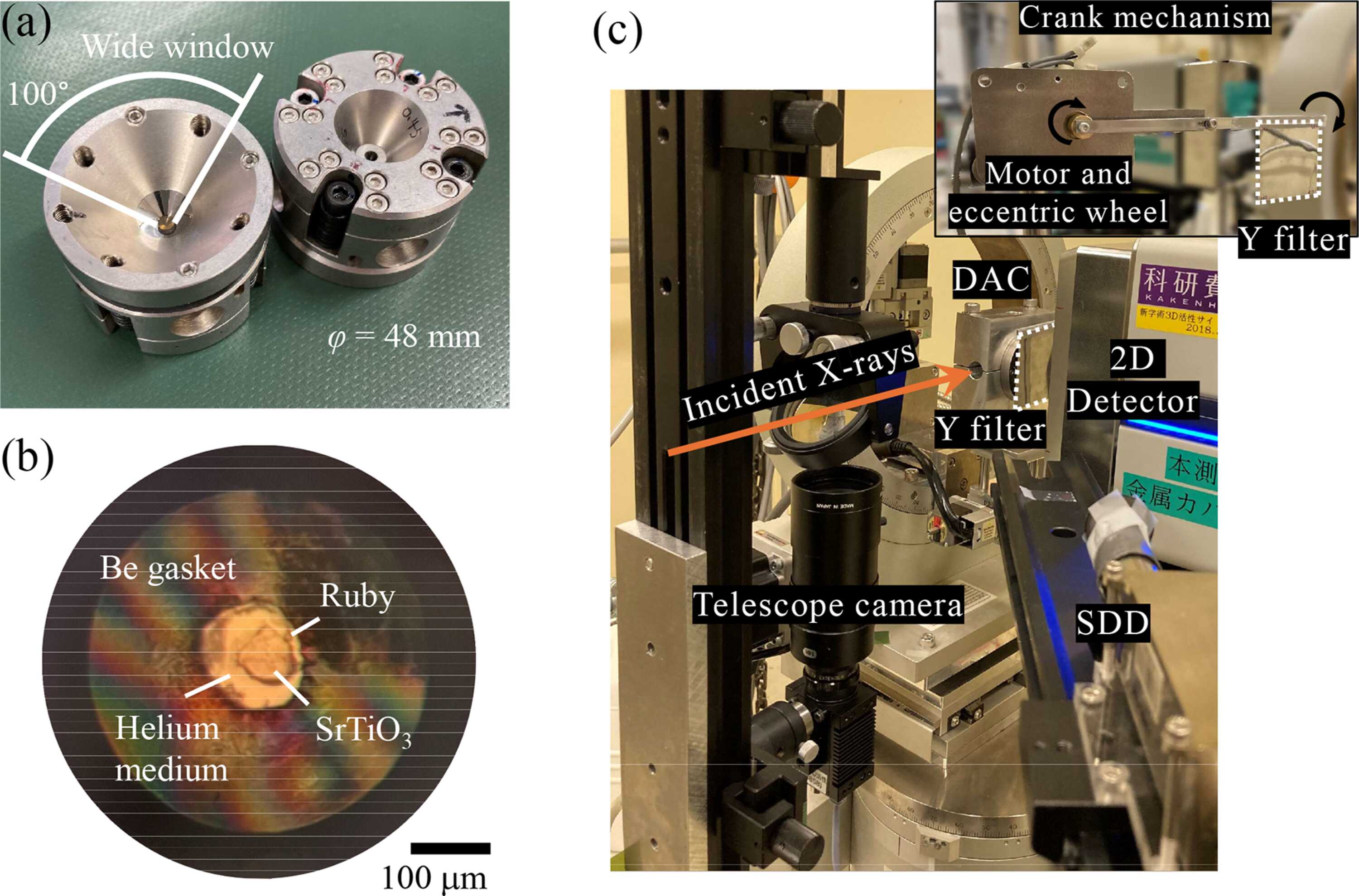

Figure 2
(a) Symmetric DAC dedicated to XFH under high pressure. (b) Photograph of the sample chamber under 13.3 GPa. (c) Photograph of the experimental setup for high-pressure XFH. The inset shows a photograph of the crank mechanism used to reciprocate the Y filter. The filter was connected to an eccentric wheel of the motor by a rod.
