Figure 1

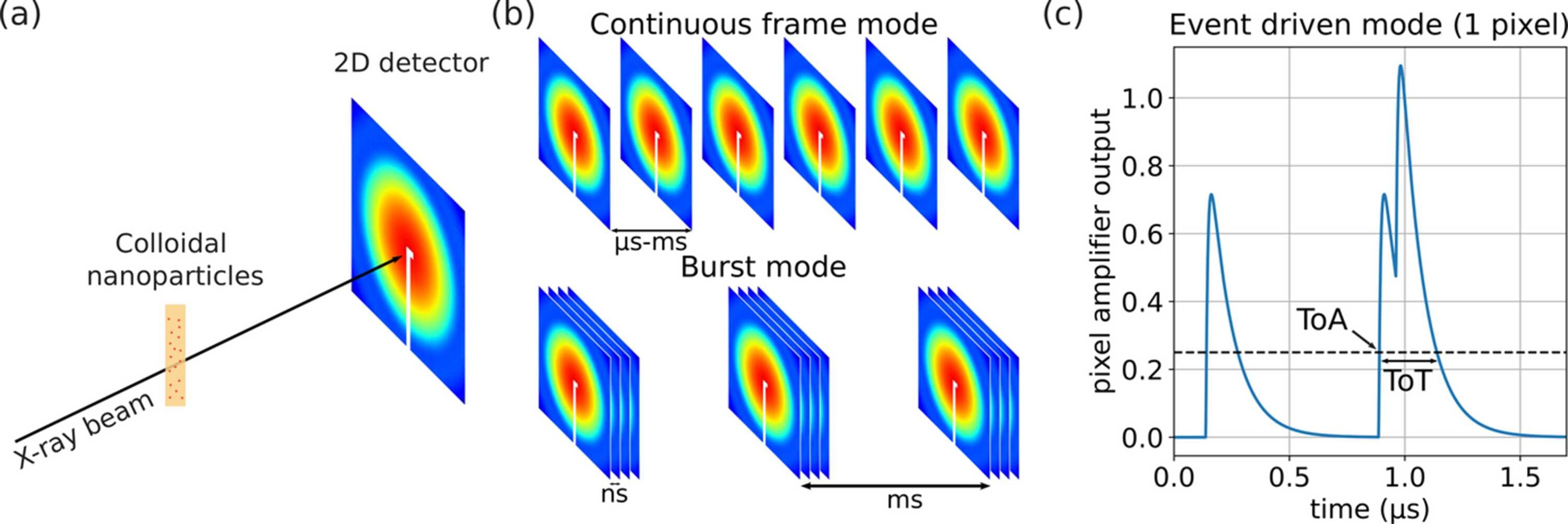

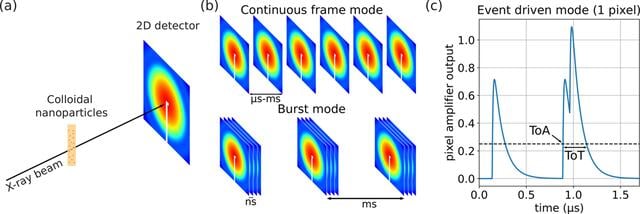

Detector operation modes. (a) A sketch of the small angle scattering geometry used in this study. (b) Typically temporal series of 2D scattering patterns can be collected in two different acquisition modes (continuous and burst). (c) In event driven mode, time of arrival (ToA), time over threshold (ToT) and pixel index are sent in a data packet for each detected photons. In this sketch (1 pixel detector), two events are shown including one and two photons event. Two-dimensional frames can be reconstructed by software counting the photon events within a given time interval.
