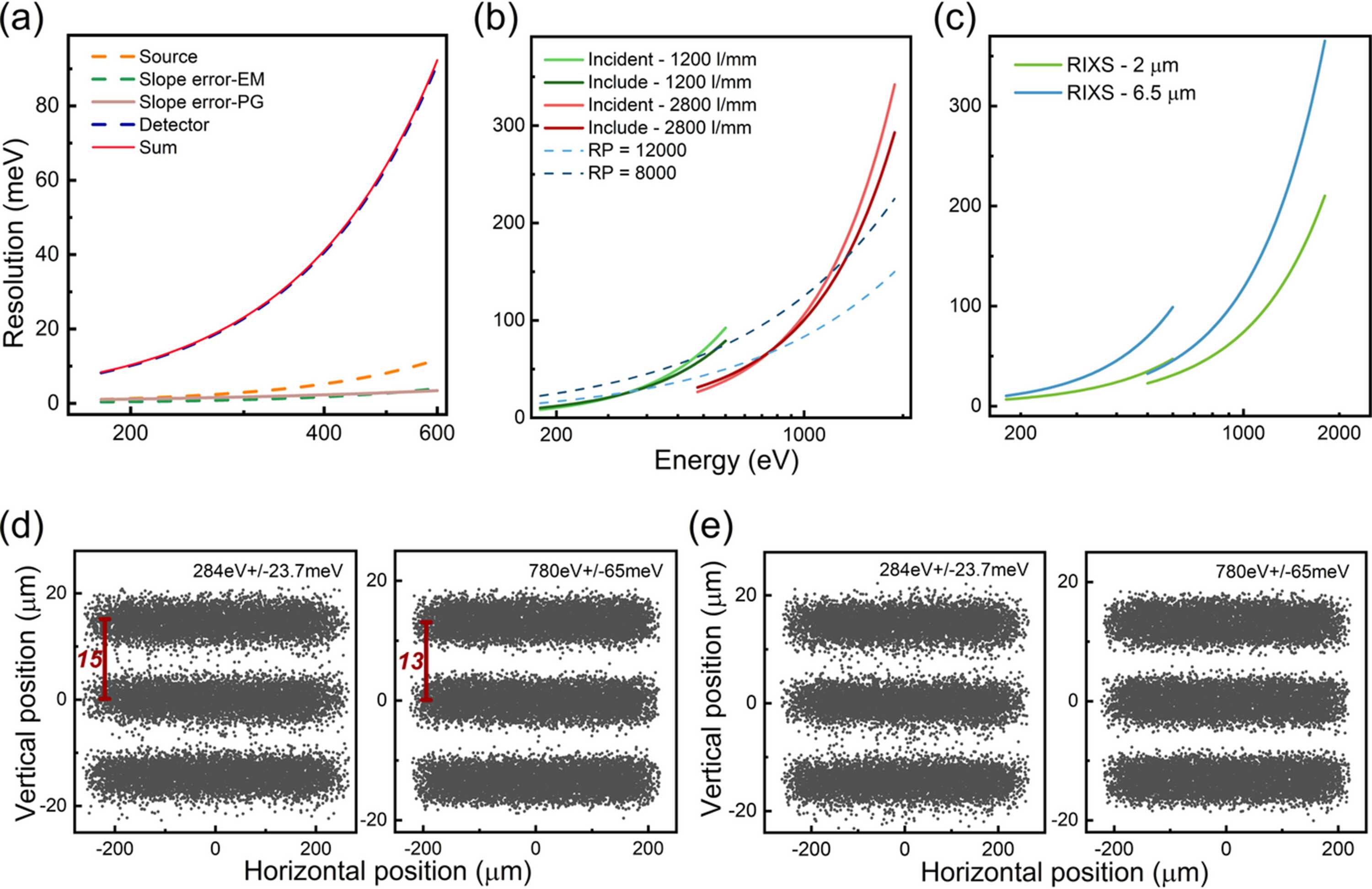

Energy resolution of the spectrometer. (a) The contribution of various factors on the calculated resolution under the constant incident angle method within the LEG. (b) Total resolution for different methods and gratings. (c) Total resolution under different sCMOS settings (2 µm pixel and 6.5 µm pixel). (d) SHADOW simulations at the detector plane with the constant incident angle method at 284 eV (using the LEG) and 780 eV (using the HEG). (e) SHADOW simulations at the detector plane with the constant included angle (172°) method at 284 eV (using the LEG) and 780 eV (using the HEG).
