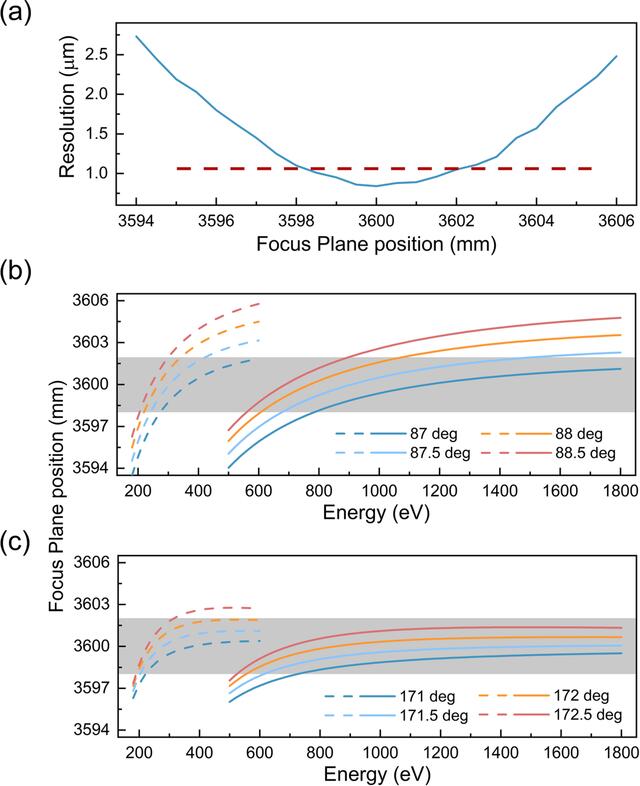

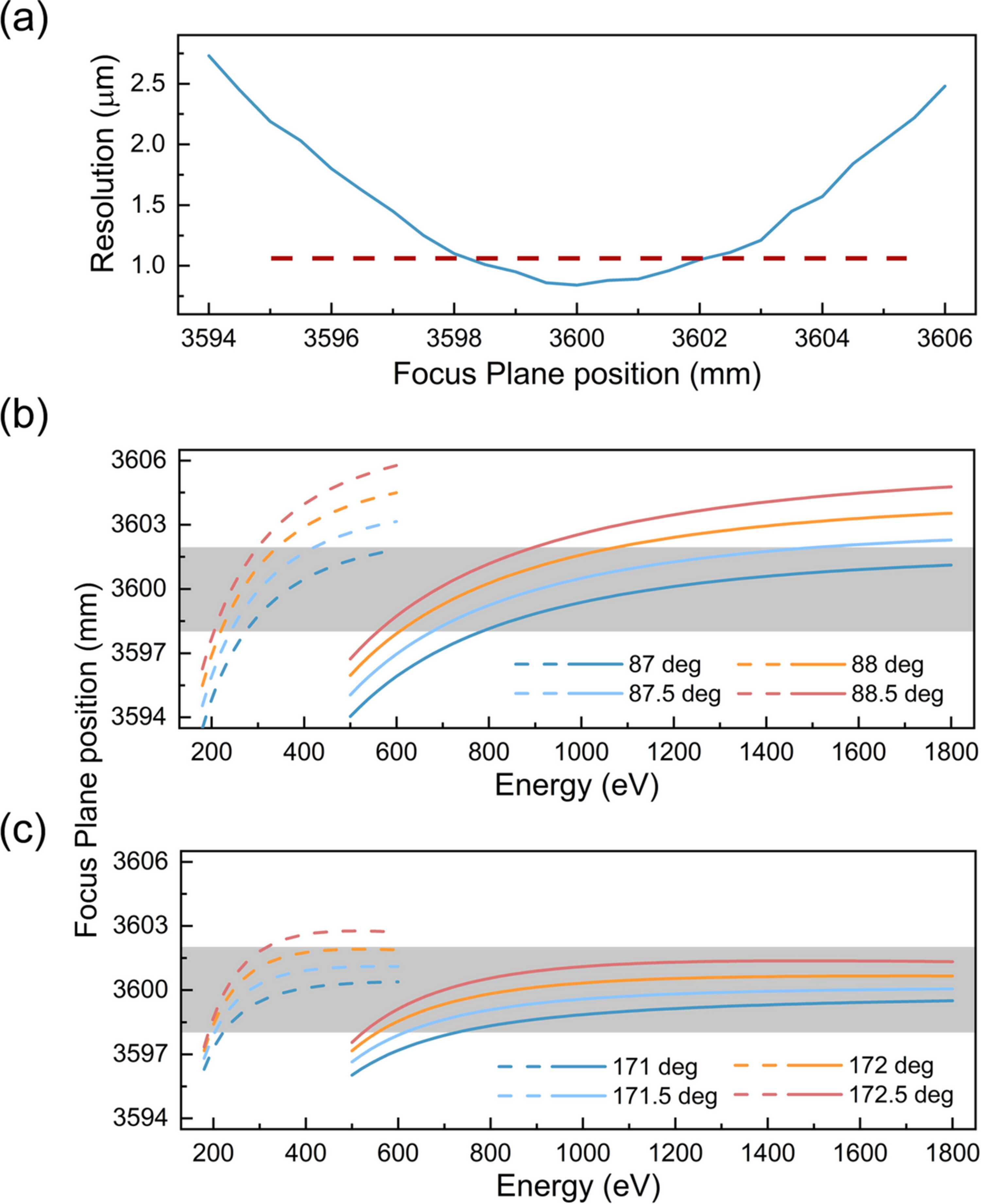

Figure 5
Calculation of the focal plane position. (a) Spatial resolution at different focal plane positions (central position at 3600 mm). (b) Variation of the focal plane positions with energy under a fixed b2 for the constant incident angle method. (c) Variation of focal plane positions with energy under a fixed b2 for the constant included angle method.
