Figure 2

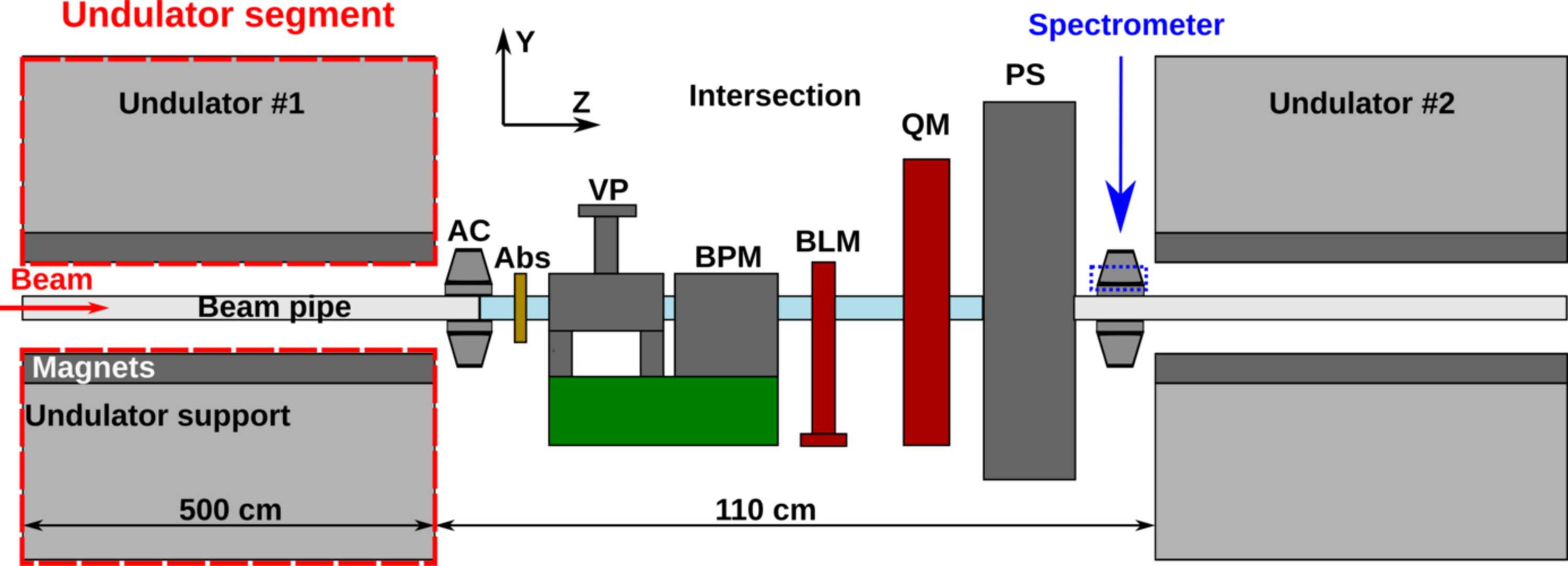

Schematic presentation of the geometry used in the simulations. AC: air coil; Abs: absorber; VP: vacuum pump; BPM: beam position monitor; BLM: beam loss monitor; QM: quadrupole magnet; PS: phase shifter. The CZT spectrometer is located behind the downstream air coil. The cylindrical beam pipe is marked with blue colour.
