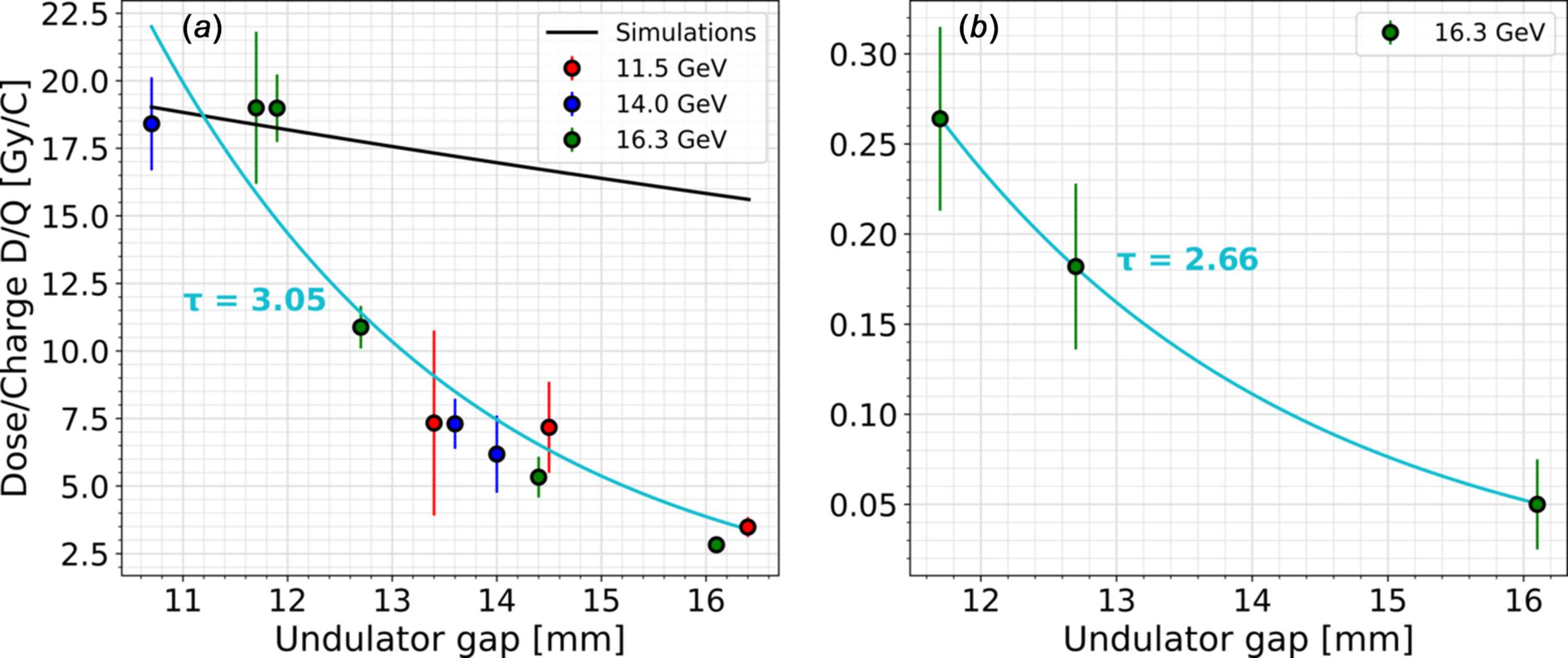

Figure 7
Dose per charge ratio dependence on the undulator gap for different electron beam energies. (a) Unshielded RADFET. (b) Shielded RADFET. The black line shows the simulations performed previously (Falowska-Pietrzak et al., 2023View full citation), normalized to the dose per charge ratio measurements. The blue line shows an exponential function fitted to measurements, with exponential decay τ.
