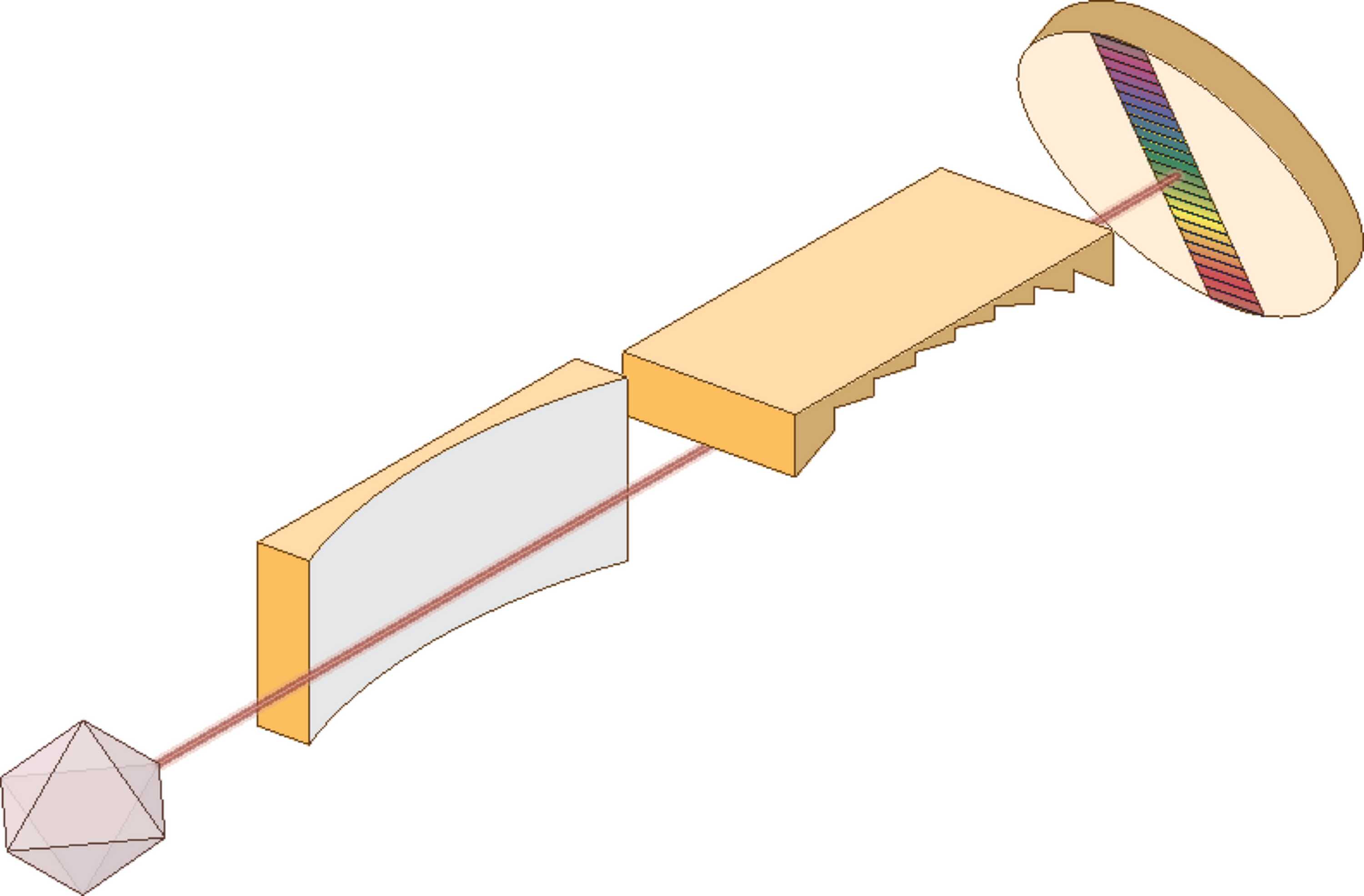

Figure 1
The spectrometer consists of a parabolic collimating mirror in the horizontal plane followed by a cylindrical grating that disperses the incoming light in the vertical plane as a function of wavelength. The dispersion fan is picked up by a detector placed at the relevant position to cover the energy region of interest.
