Figure 12

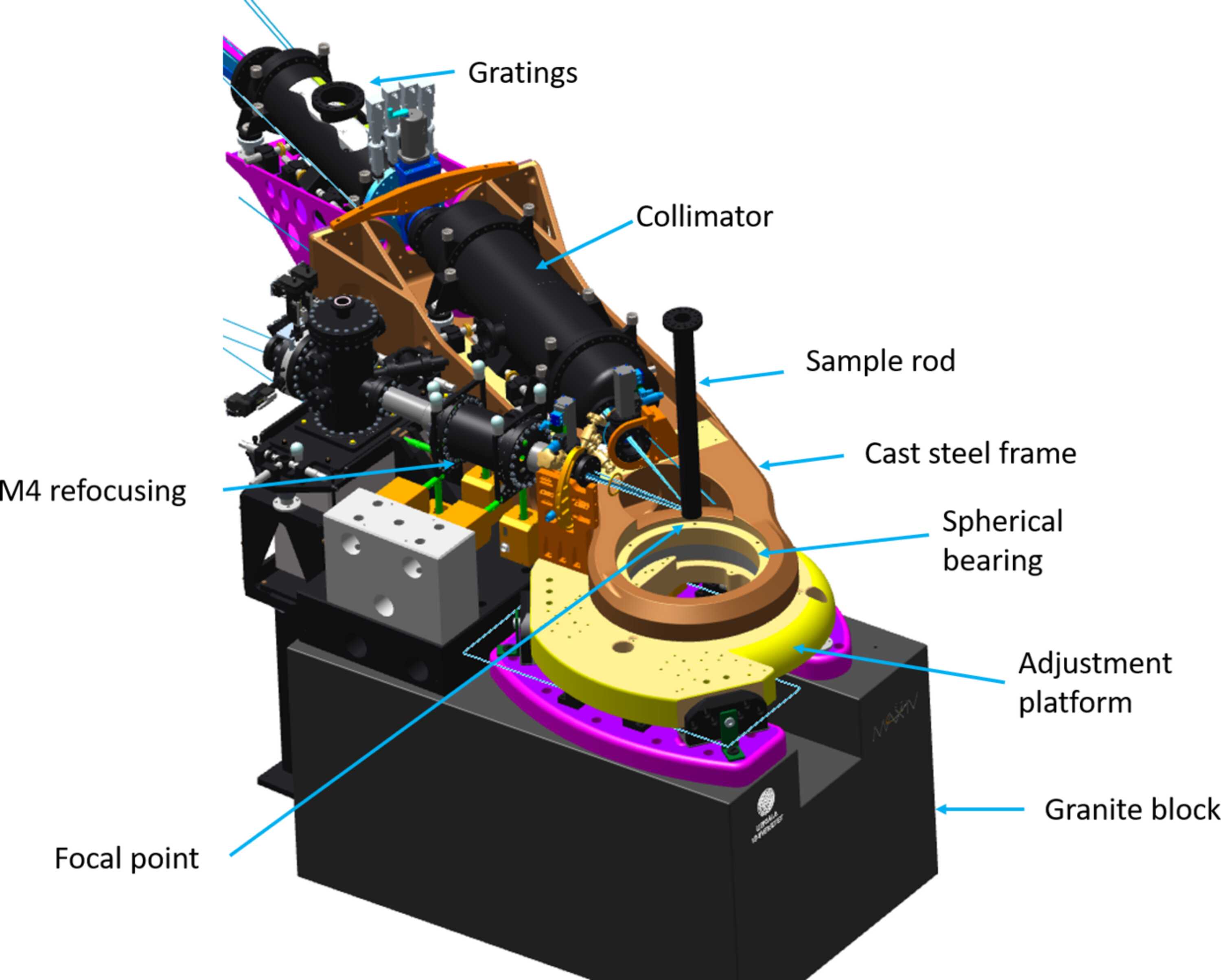

A cast stainless steel frame with optimized strength-to-weight ratio hosts the axial spherical roller bearing making the 120° horizontal rotation possible. The bearing also allows for a small vertical rotation/horizontal tilt created when the arm is lifted prior to rotation in the horizontal plane. The joining structure is a cast stainless steel focal point adjustable platform resting on a 3000 kg granite support. The steel frame houses the collimator and gratings creating a common reference. The focal point adjustment platform also acts as base support for the manipulator frame.
