Figure 19

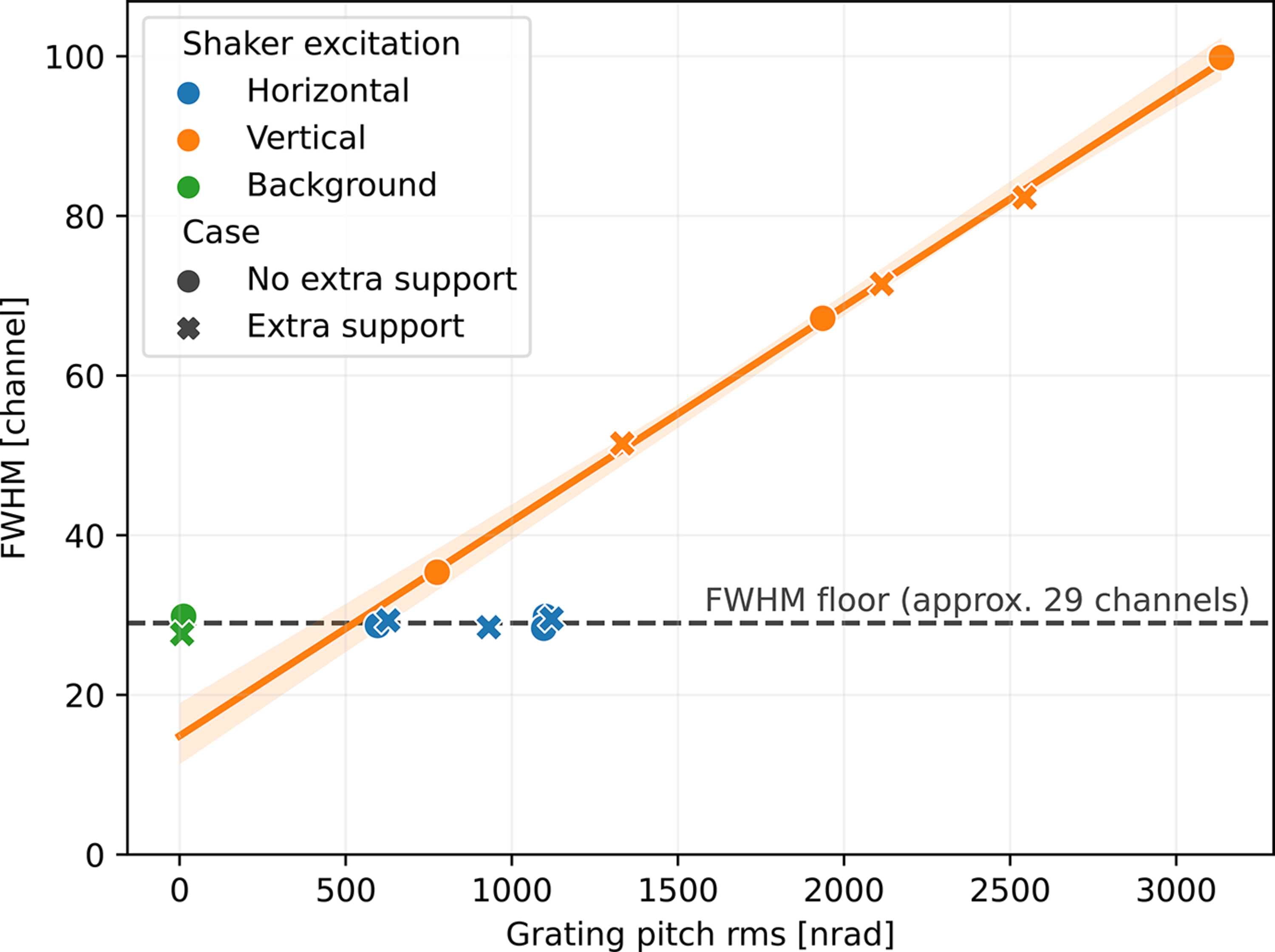

Induced vibration shows a linear relationship between grating pitch and FWHM on the detector. Extrapolating towards zero induced vibrations gives the 17 channel wide image by the detector. Adding extra support under the spectrometer arm forces energy into higher modes and, with the same amount of induced energy, causes a further broadening of the signal at the detector.
