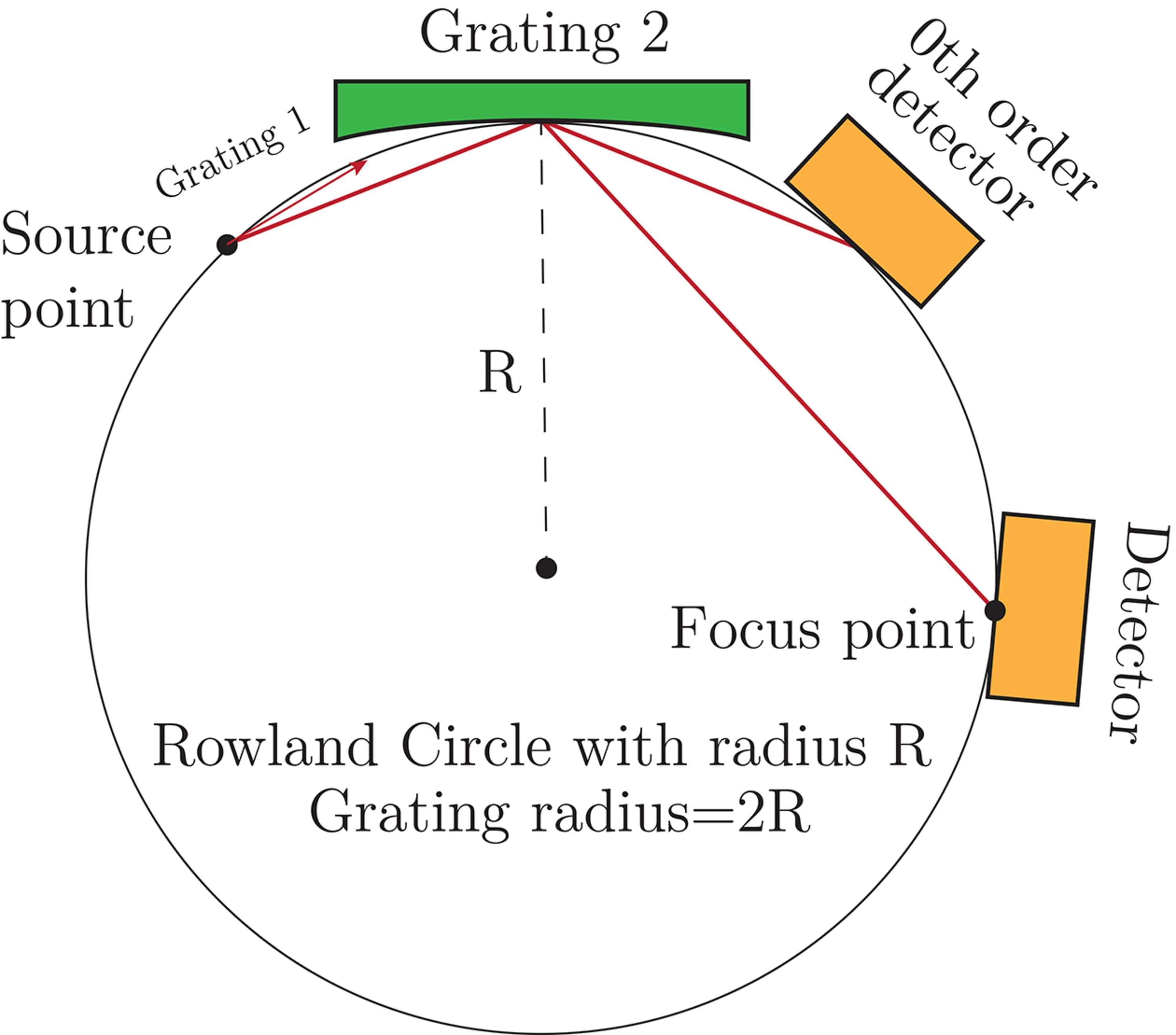

Figure 2
The optical components are placed on a circle with half the radius of the concave grating, with grating and detectors oriented tangentially to the circle. In positive order of diffraction, the exit angle of the beam from the grating is larger than the entrance angle. In the present application, the circle radius is 67 m and the grating and detector are both situated in the 10 m top section of the circle.
