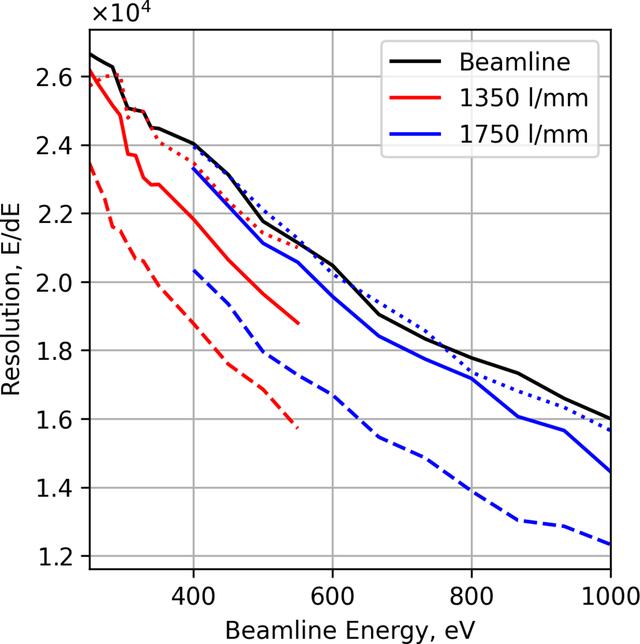

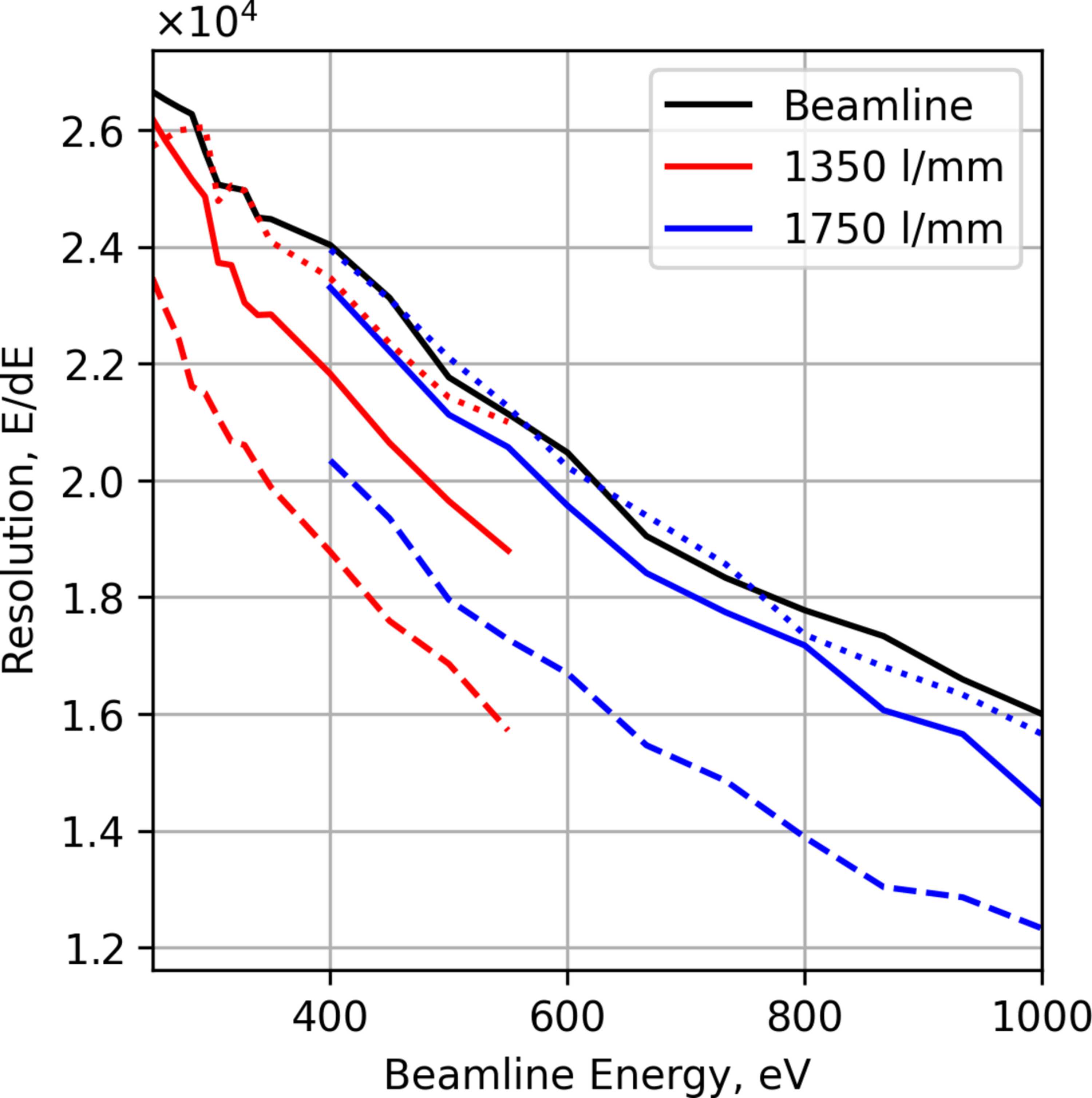

Figure 5
Resolving power of the RIXS instrument in combination with the beamline using the 1200 lines mm−1 gratings, 20 m exit slit and cff = 2.25. The 1350 lines mm−1 (red) and 1750 lines mm−1 (blue) gratings are shown over their respective energy ranges for the Pilz (solid), JTEC (dashed) and apertured JTEC (dotted) gratings. Beamline resolution alone shown in black for reference.
