Figure 6

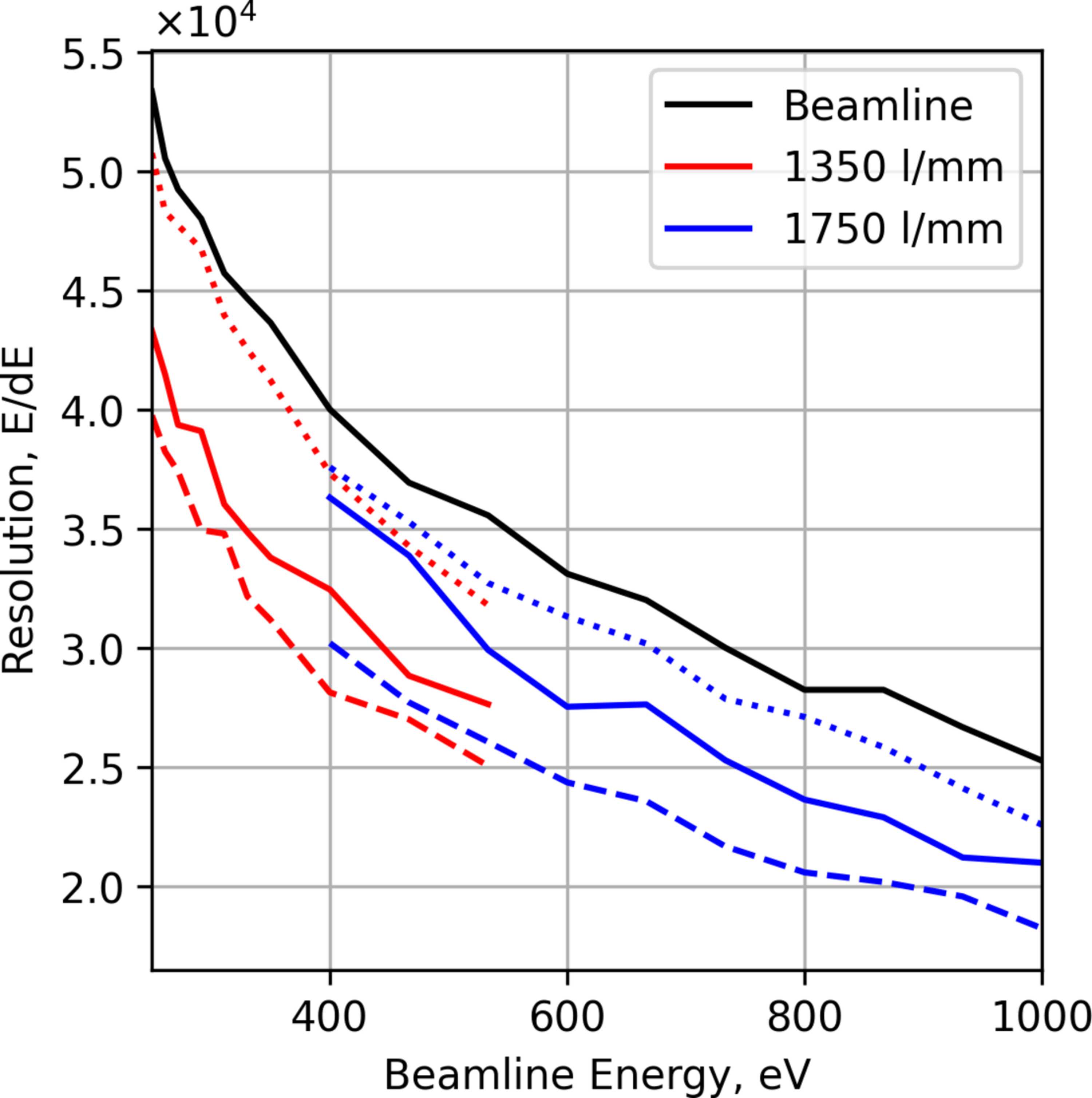

The combined resolution of the spectrometer and the Veritas beamline using the 2400 lines mm−1 gratings, 20 m vertical exit slit height and cff = 5. The 1350 lines mm−1 (red) and 1750 lines mm−1 (blue) gratings are shown over their respective energy ranges for the Pilz (solid), JTEC (dashed) and apertured JTEC (dotted) gratings. Beamline resolution alone shown in black for reference.
