The 10 m collimated Rowland spectrometer at the MAX IV Veritas beamline

Agåker, M.; Englund, C.-J.; Ekholm, V.; Kjellsson, L.; Sjöblom, P.; Pickworth, L.; Söderström, J.; Johansson, N.; Ghosh, A.; Tokushima, T.; Caputo, M.; Forsberg, J.; Felcsuti, G.; Fredriksson, P.; Malki, S.; Wassdahl, N.; Såthe, C.; Rubensson, J.-E.

doi:10.1107/S1600577525005478

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

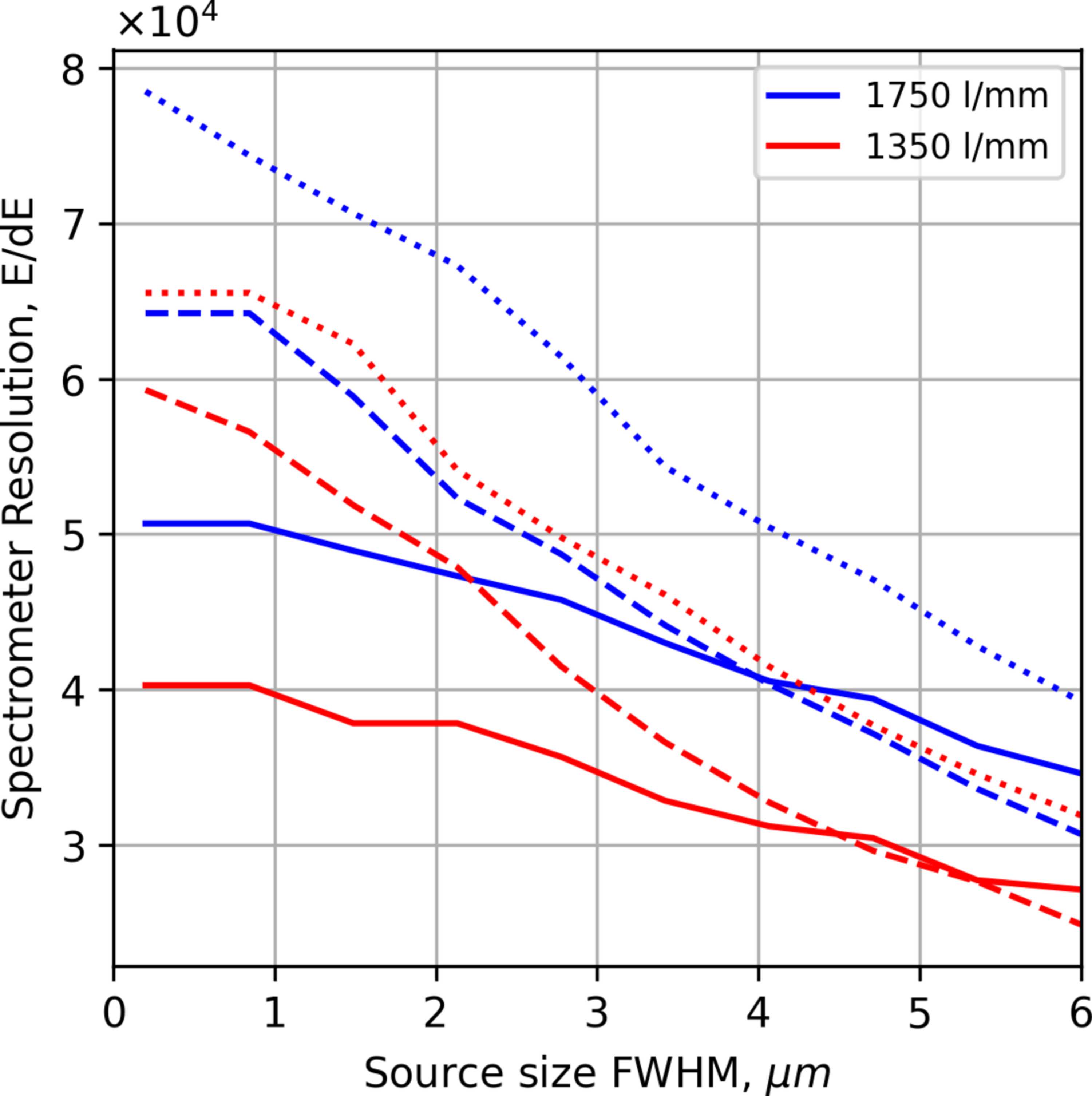

Figure 7
The resolving power of the RIXS instrument for the 1350 lines mm⁻¹ (red) and 1750 lines mm⁻¹ gratings (blue) at 529.4 eV with varying vertical source size, solid line Pilz, dashed line JTEC, and the dotted line is the apertured JTEC, with a beamline resolving power of 100000.

JOURNAL OF
SYNCHROTRON
RADIATION

ISSN: 1600-5775

Volume 32| Part 5| September 2025| Pages 1328-1345

https://doi.org/10.1107/S1600577525005478
