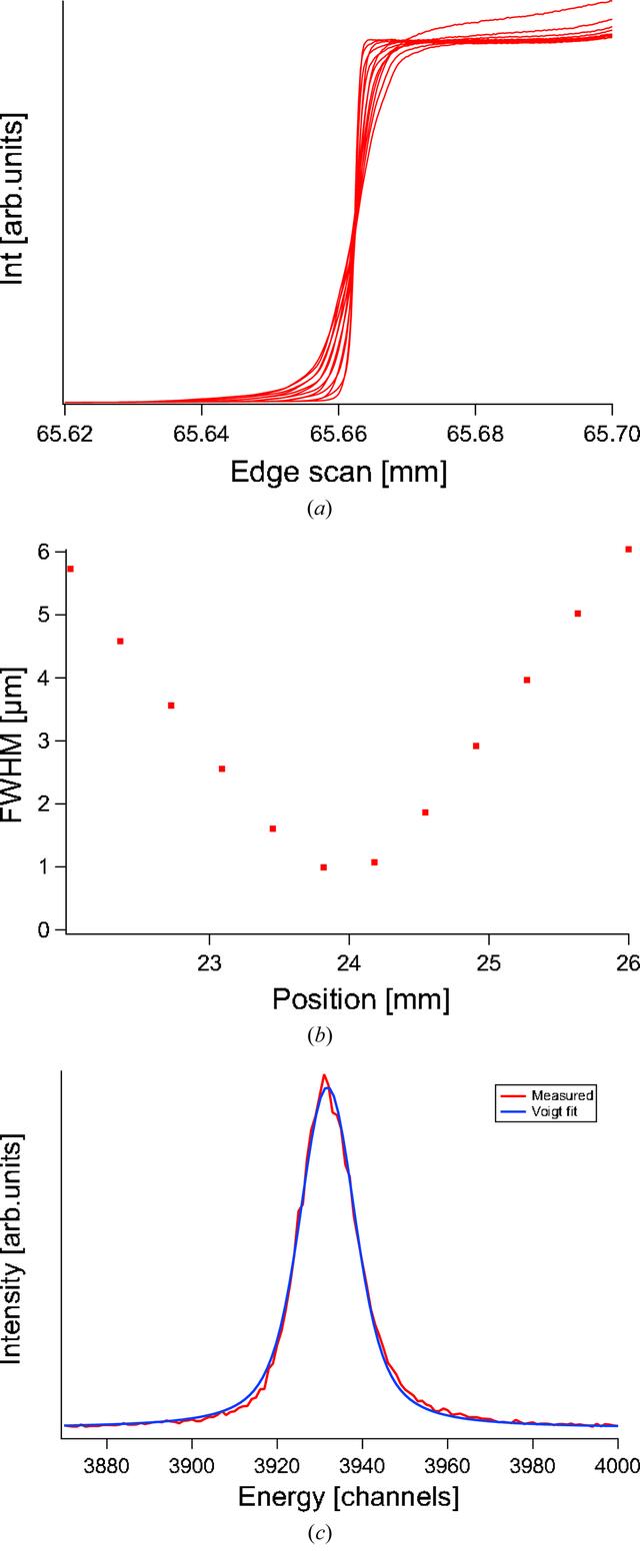

Figure 8
(a) Vertical edges scans through the incoming synchrotron beam at different positions. (b) FWHM measurements of the vertical focus at different beam positions. Best focus is ∼1 m. (c) Elastically scattered light at 468 eV on a 5 m exit slit in the beamline. Voigt fit of the line gives 15.8 channels or ∼158 µm on the detector.
