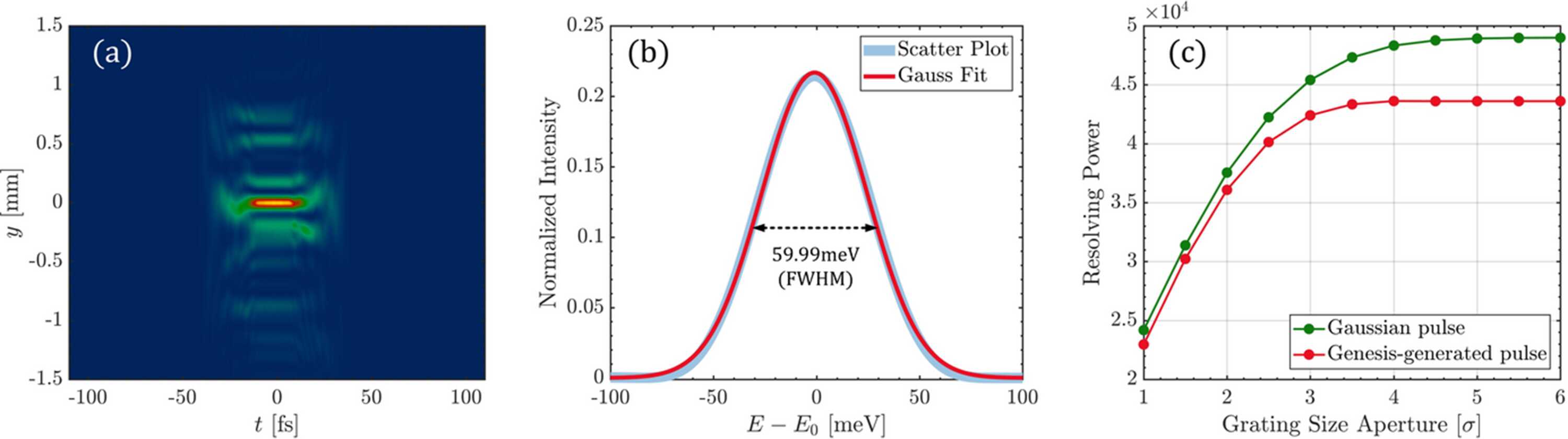

Figure 5
Impact of a 50 mm grating size on resolving power. (a) Wavefront distortion occurs in the (y, t) domain before the slit. (b) The aperture diffraction effect of the grating causes spectral broadening of the integrated spectrum obtained after the slit. (c) Impact of the grating aperture on the monochromator's resolving power.
