Figure 4

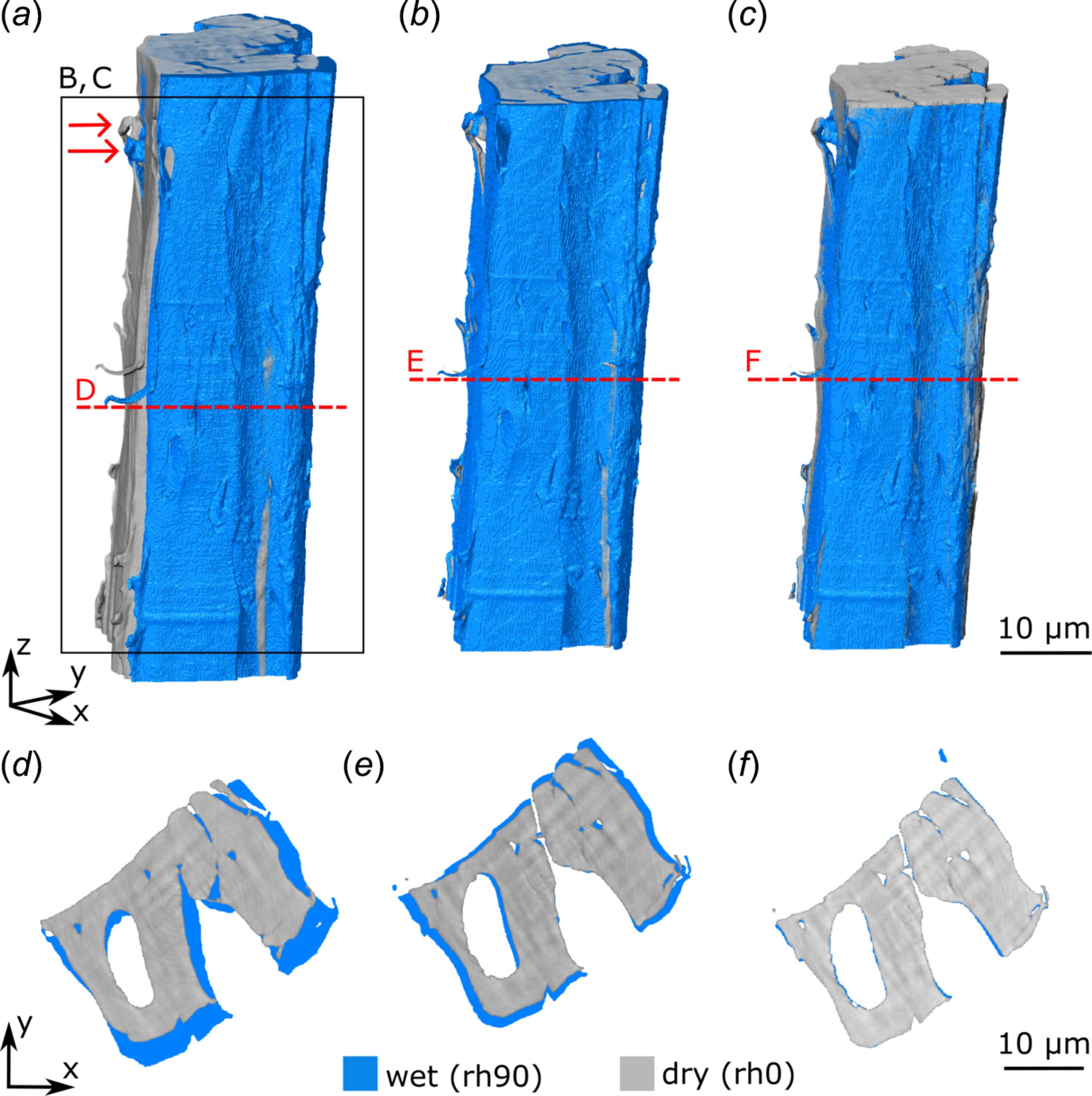

Volume rendering and cross section area of a nanotomographic scan of endocarp cells of H. crepitans. In situ nanotomography scans acquired at the beamline P05 in combination with the climate chamber. Blue depicts the cell wall at 90% relative humidity (r.h. 90) and grey is the same cell wall at 0% relative humidity (r.h. 0). (a) Volume rendering of the datasets obtained after reconstruction. (b) Volume rendering after rigid registration to align the volumes. To prevent protruding elements along the length (z-axis), the volume was cropped. (c) Volume rendering after affine registration to deform one dataset into the other to read out the scaling factors. (d) Cross sectional view of the unaligned datasets. (e) Cross sectional view of the rigidly aligned datasets. (f) Cross sectional view of the affinely registered datasets with small misalignments along the edges.
