Figure 1

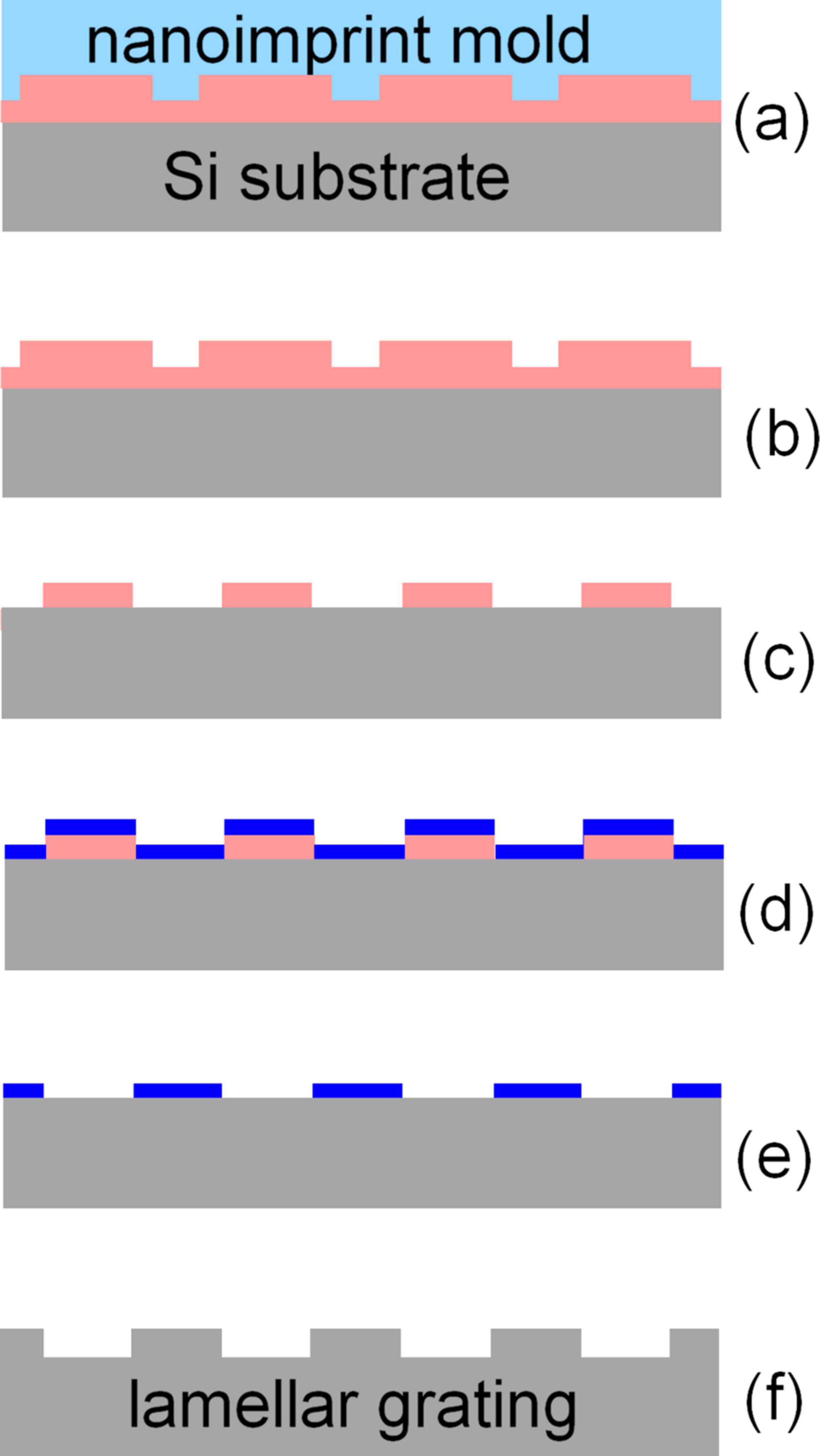

Process flow for lamellar gratings: nanoimprinting (a), resist pattern after demolding (b) and residual layer etch (c), Cr deposition (d), hard mask after lift-off (e), and the final grating after groove etching and mask removal (f). The colors depict Si (gray), quartz (light blue), resist (pink) and Cr (blue).
