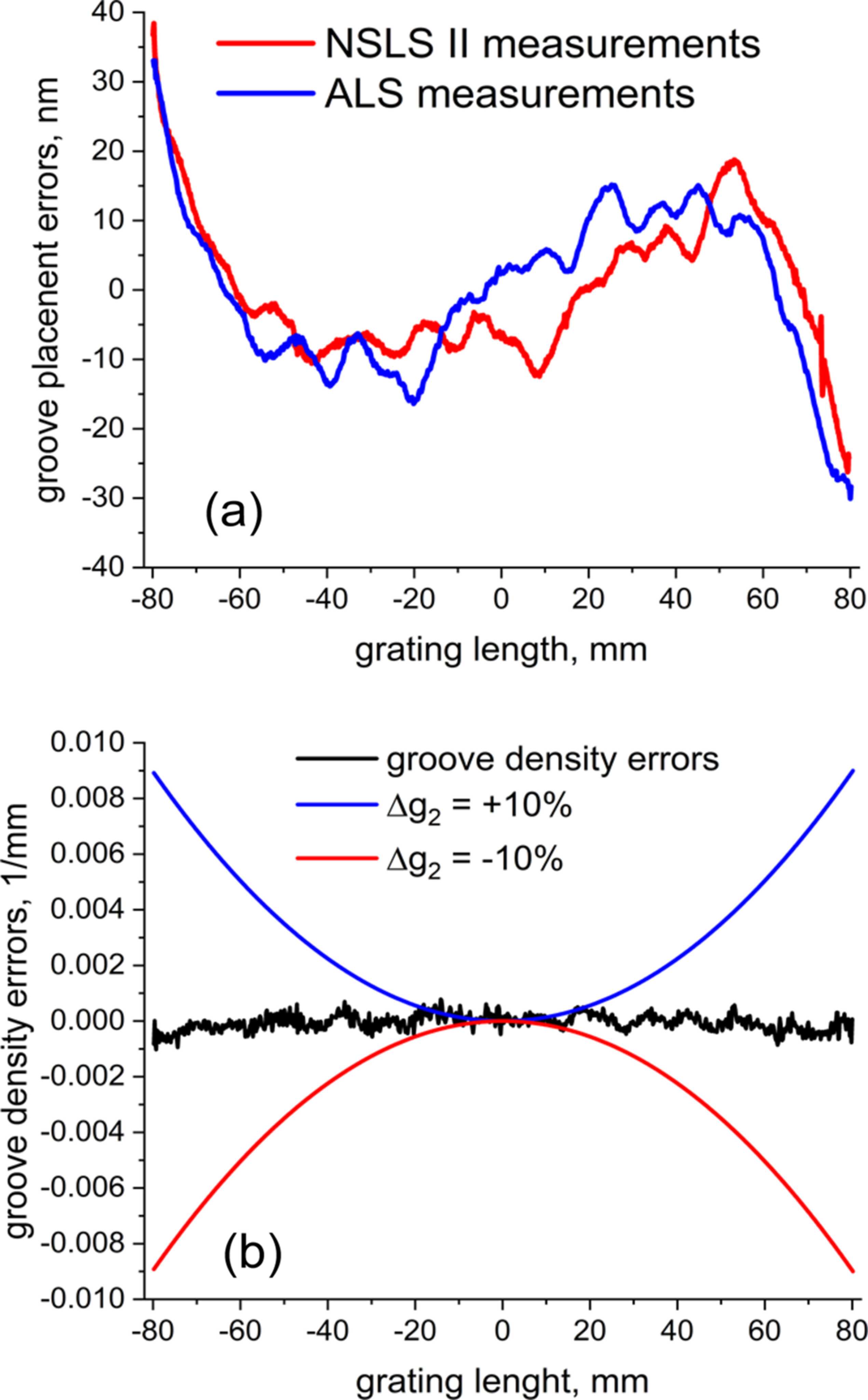

Figure 6
Groove placement errors measured for the ±1st orders (red) and ±7th orders (blue) for the reference grating pattern (a). Groove density errors for the reference grating (b); the groove density errors caused by ±10% tolerance specified for the g2 are shown with blue and red curves.
